3KM52301AB01

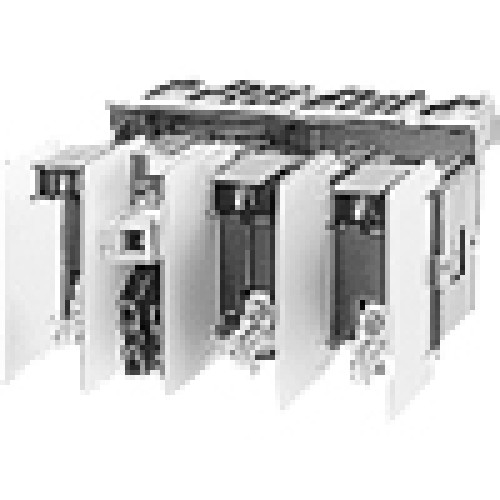

Switch disconnector with fuse in new design Iu=125 A, Ue = 690 V, 3-pole for LV HRC fuse Sz. 00 basi

Manufacturer's No: 3KM5230-1AB01     Manufacturer: Siemens
Switch disconnector with fuse in new design Iu=125 A, Ue = 690 V, 3-pole for LV HRC fuse Sz. 00 basi

Availability On Request

POA

This product has been superseded by

3KF23120MF11

Please check compatibility before purchasing.

  • Switch disconnector with fuse
  • Rated operational current (Iu): 125 A
  • Rated operational voltage (Ue): 690 V
  • 3-pole design for LV HRC fuse Sz. 00
  • End of product lifecycle: 31/12/22
  • Successor model: 3KF2312-0MF11
  • Different dimensions and some technical values deviate


Product

Manufacturer Material ID -
3KM5230-1AB01
Net Weight -
2.42kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Rated operating voltage -
- Volt
Conditioned rated short-circuit current Iq -
- kiloampere
Number of switches -
-
Rated short-time withstand current lcw -
- kiloampere
Rated permanent current at AC-21, 400 V -
- Ampere
Switching power at 400 V -
- Kilowatt
Degree of protection (NEMA) -
UN
Number of auxiliary contacts as normally open contact -
0
Number of auxiliary contacts as normally closed contact -
0
Rated permanent current Iu -
125 Ampere
Number of poles -
3
Degree of protection (IP), front side -
IP00
Number of auxiliary contacts as change-over contact -
0
Interlockable -
Type of electrical connection of main circuit -
Other
Version as emergency stop installation -
Type of control element -
Other
Version as main switch -
Version as safety switch -
Version as maintenance-/service switch -
Rated operation power at AC-23, 400 V -
65 Kilowatt
Colour control element -
Other
Suitable for distribution board installation -
Suitable for intermediate mounting -
Max. rated operation voltage Ue AC -
690 Volt
Device construction -
Built-in device plug-in technique
Rated permanent current at AC-23, 400 V -
125 Ampere

Availability On Request

POA
Sign in or Register for customer prices.

This product has been superseded by

3KF23120MF11

Please check compatibility before purchasing.
