3LD24300TK13

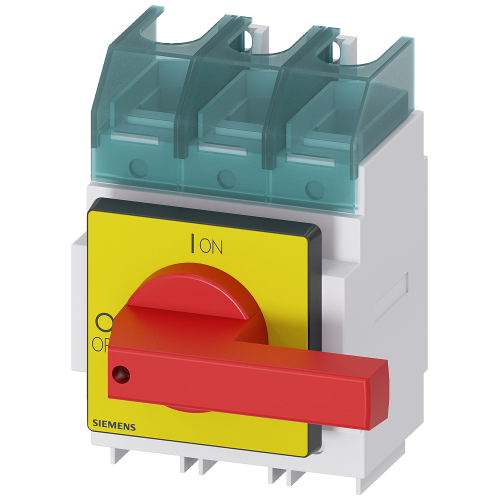

SENTRON, Switch disconnector 3LD, emergency switching-off switch, 3- pole, Iu=250 A, operating power

Manufacturer's No: 3LD2430-0TK13     Manufacturer: Siemens
SENTRON, Switch disconnector 3LD, emergency switching-off switch, 3- pole, Iu=250 A, operating power

Availability On Request

£334.97
  • Product: SENTRON Switch Disconnector 3LD
  • Type: Emergency switching-off switch
  • Configuration: 3-pole
  • Rated Current: Iu=250 A
  • Operating Power at AC-23 A 400 V: 132 kW
  • Installation: Suitable for distribution boards
  • Mechanism: Knob-operated
  • Color: Red/yellow
  • Direct handle at the switch

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3LD2430-0TK13
Net Weight -
2.05kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
39122216

Technical Specification

Rated operating voltage -
- Volt
Conditioned rated short-circuit current Iq -
- kiloampere
Switching power at 400 V -
- Kilowatt
Device construction -
Built-in device fixed built-in technique
Degree of protection (NEMA) -
Other
Colour control element -
Red
Degree of protection (IP), front side -
IP40
Interlockable -
Max. rated operation voltage Ue AC -
690 Volt
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Number of switches -
1
Rated operation power at AC-23, 400 V -
132 Kilowatt
Rated operation power at AC-3, 400 V -
110 Kilowatt
Rated permanent current at AC-21, 400 V -
250 Ampere
Rated permanent current at AC-23, 400 V -
224 Ampere
Rated permanent current Iu -
250 Ampere
Rated short-time withstand current lcw -
4 kiloampere
Suitable for floor mounting -
Type of control element -
Toggle
Type of electrical connection of main circuit -
Frame clamp
Version as emergency stop installation -
Version as main switch -
Version as maintenance-/service switch -
Version as safety switch -
