3NP52600EA26

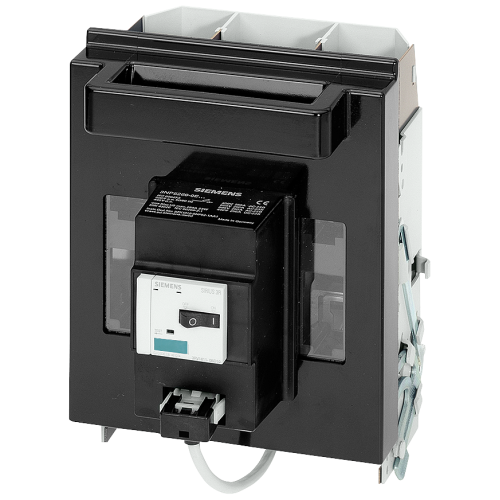

SENTRON, 3NP5 fuse switch disconnector, 3-pole, NH1, 250 A

Manufacturer's No: 3NP5260-0EA26     Manufacturer: Siemens
SENTRON, 3NP5 fuse switch disconnector, 3-pole, NH1, 250 A

Availability Back Order

£728.58
  • Product: SENTRON Fuse Switch Disconnector 3NP5
  • Configuration: 3-pole, NH1
  • Current Rating: 250 A
  • Mounting: Assembly on mounting plate
  • Features High-speed closing
  • Terminals: Screw terminal
  • Fuse Monitoring: Through 3RV
  • Auxiliary Switch at Switch Disconnector: 1 Normally Open + 1 Normally Closed
  • Auxiliary Switch at Fuse Monitoring: 2 Normally Open

Selectable mandatory product

Accessories



Product

Manufacturer Material ID -
3NP5260-0EA26
Net Weight -
5.98kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Conditioned rated short-circuit current Iq -
- kiloampere
Rated operation power at AC-23, 400 V -
- Kilowatt
Rated short-time withstand current lcw -
- kiloampere
Suitable for ground mounting -
Cable entry -
Other
Degree of protection (IP), front side -
IP00
Max. rated operation voltage Ue AC -
690 Volt
Number of poles -
3
Position control element -
Front
Rated permanent current Iu -
250 Ampere
Suitable for floor mounting -
Suitable for fuses -
NH0, NH1
Type of control element -
Cover grip
Type of electrical connection of main circuit -
Screw connection
Version as safety switch -
With error protection -

Availability Back Order

£728.58
