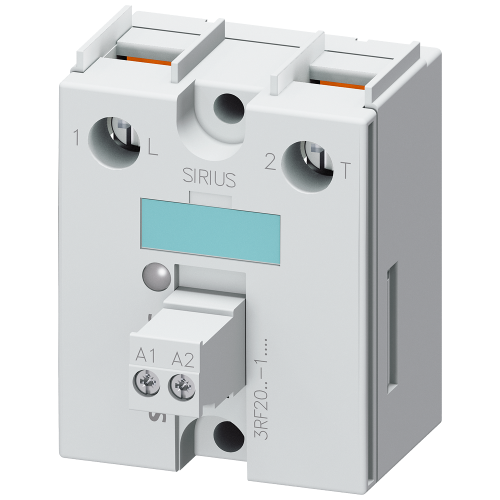

3RF20201AA04

Semiconductor relay, 1-phase 3RF2 Width 45 mm, 20 A 48-460 V / 24 V DC screw terminal

Manufacturer's No: 3RF2020-1AA04     Manufacturer: Siemens
Semiconductor relay, 1-phase 3RF2 Width 45 mm, 20 A 48-460 V / 24 V DC screw terminal

View 3D

Availability Back Order

£42.75
  • Semiconductor relay
  • 1-phase
  • Width: 45 mm
  • Current: 20 A
  • Voltage: 48-460 V AC / 24 V DC
  • Screw terminal
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video
Instructional video


Product

Manufacturer Material ID -
3RF2020-1AA04
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
EAR99H / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated operation power at AC-3, 400 V -
- Kilowatt
Rated operation current Ie at AC-3, 400 V -
- Ampere
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated operation power NEMA -
- Kilowatt
Number of main contacts as normally open contact -
1
Number of normally closed contacts as main contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of auxiliary contacts as normally closed contact -
0
Rated operation current Ie at AC-1, 400 V -
20 Ampere
Rated control supply voltage Us at DC -
15 Volt
Type of electrical connection of main circuit -
Screw connection
Operating voltage -
48 Volt
Modular version -
Number of phases -
1
Rated control supply voltage at DC -
15 Volt
Rated operation current Ie at AC-1 -
20 Ampere
Rated operation current Ie at AC-51 -
20 Ampere
Voltage type for actuating -
DC

Availability Back Order

£42.75
