3RF34052BB04

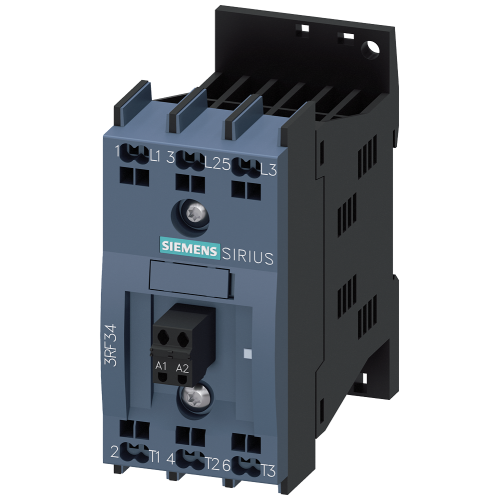

Solid-state contactor 3-phase 3RF3 AC 53 / 5.2 A / 40 °C 48-480 V / 24 V DC 2-phase controlled Inst

Manufacturer's No: 3RF3405-2BB04     Manufacturer: Siemens
Solid-state contactor 3-phase 3RF3 AC 53 / 5.2 A / 40 °C 48-480 V / 24 V DC 2-phase controlled Inst

View 3D

Availability Back Order

£142.72
  • Solid-state contactor for 3-phase applications
  • Rated at 53 A AC and 5.2 A at 40°C
  • Operating voltage range of 48-480 V AC with 24 V DC control
  • Instantaneous switching for precise control
  • Equipped with spring-type terminals
Question and Answer (Q&A video)
Presentation video
Question and Answer (Q&A video)
Instructional video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RF3405-2BB04
Net Weight -
0.28kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated operation current Ie at AC-1, 400 V -
- Ampere
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated operation power at AC-3, 400 V -
2.2 Kilowatt
Number of main contacts as normally open contact -
2
Number of normally closed contacts as main contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of auxiliary contacts as normally closed contact -
0
Rated operation current Ie at AC-3, 400 V -
5.2 Ampere
Type of electrical connection of main circuit -
Spring clamp connection
Rated operation power NEMA -
1.47 Kilowatt
Operating voltage -
48 Volt
Modular version -
Number of phases -
3
Rated operation current Ie at AC-3 -
5.2 Ampere
Rated operation current Ie at AC-53a -
5.2 Ampere
Voltage type for actuating -
DC

Availability Back Order

£142.72
