3RF34101BD24

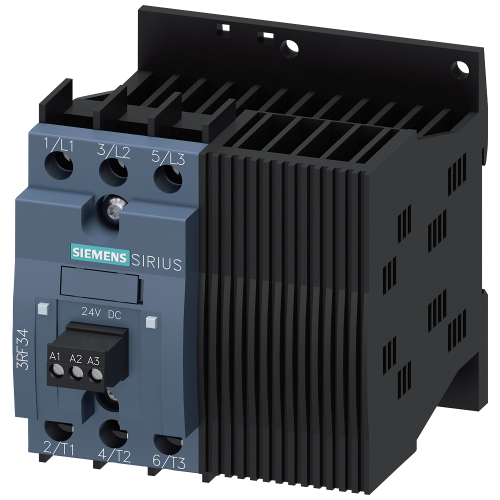

Solid-state contactor 3-phase 3RF3 AC 53 / 7.4 A / 40 °C 48-480 V / 110-230 V AC Reversing circuit

Manufacturer's No: 3RF3410-1BD24     Manufacturer: Siemens
Solid-state contactor 3-phase 3RF3 AC 53 / 7.4 A / 40 °C 48-480 V / 110-230 V AC Reversing circuit

Availability On Request

£315.88
  • Solid-state contactor
  • 3-phase
  • 3RF3 model
  • AC switching
  • Rated at 53 A (7.4 A at 40°C)
  • Operating voltage range: 48-480 V AC
  • Control voltage range: 110-230 V AC
  • Reversing circuit capability
  • Instantaneous switching
  • Screw terminal connection

Accessories

Question and Answer (Q&A video)
Presentation video
Question and Answer (Q&A video)
Instructional video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RF3410-1BD24
Net Weight -
0.52kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated operation current Ie at AC-1, 400 V -
- Ampere
Rated control supply voltage Us at DC -
- Volt
Rated operation current Ie at AC-4, 400 V -
- Ampere
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated operation power at AC-3, 400 V -
3 Kilowatt
Number of main contacts as normally open contact -
2
Number of normally closed contacts as main contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of auxiliary contacts as normally closed contact -
0
Rated operation current Ie at AC-3, 400 V -
7.4 Ampere
Rated control supply voltage Us at AC 50HZ -
110 Volt
Rated control supply voltage Us at AC 60HZ -
110 Volt
Type of electrical connection of main circuit -
Screw connection
Rated operation power NEMA -
2.21 Kilowatt
Operating voltage -
48 Volt
Modular version -
Number of phases -
3
Rated control supply voltage at AC 50 Hz -
110 Volt
Rated control supply voltage at AC 60 Hz -
110 Volt
Rated operation current Ie at AC-3 -
7.4 Ampere
Rated operation current Ie at AC-53a -
7.4 Ampere
Voltage type for actuating -
AC

Availability On Request

£315.88
