AUX. SWITCH BLOCK,2NO+2NC

3RH29212HA220KT0

AUX. SWITCH BLOCK,2NO+2NC

Produced by Siemens

Availability Back Order

Price - £12.22

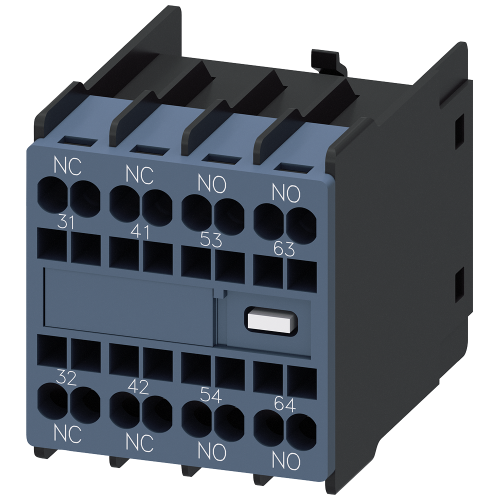

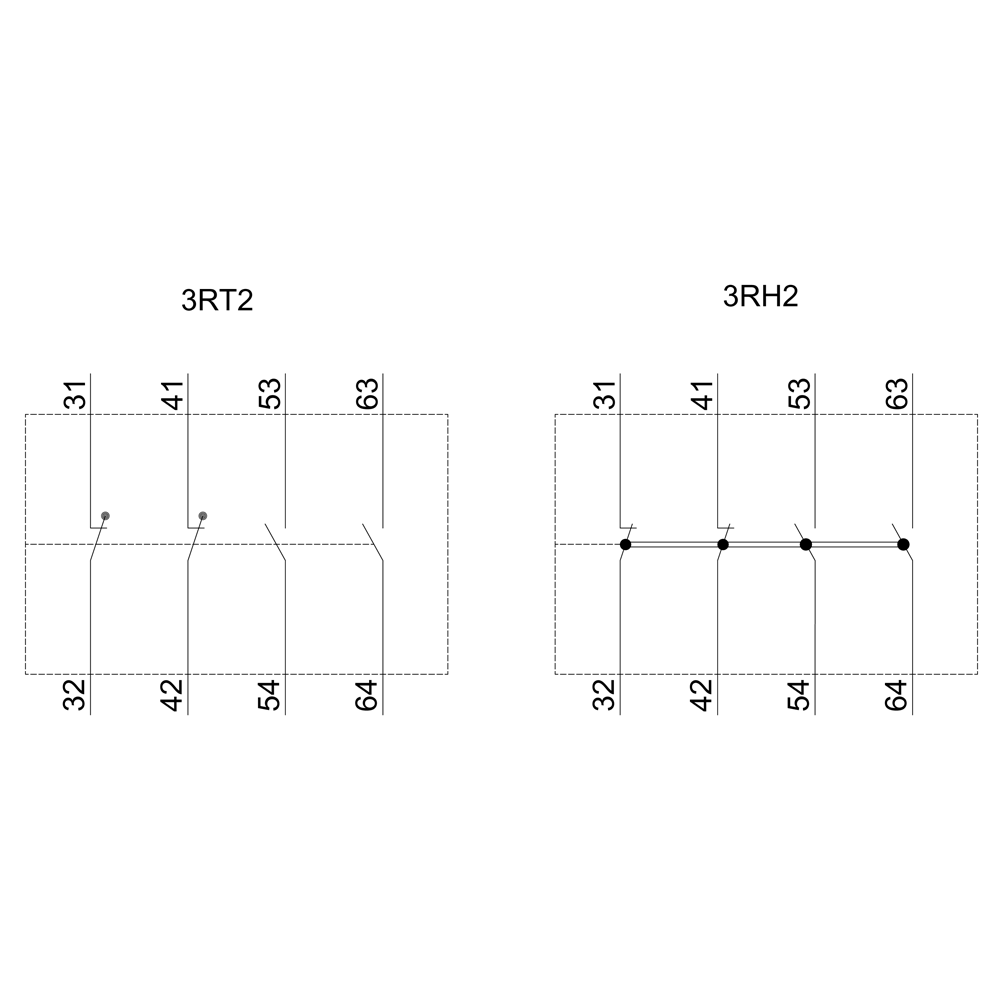

Auxiliary switch on the front, 2 NO + 2 NC Current path 1 NC, 1 NC, 1 NO, 1 NO for 3RH and 3RT spring-type terminal 31/32, 41/42, 53/54, 63/64
Product
Manufacturer Material ID -
3RH2921-2HA22-0KT0
Net Weight -
0.05kg
Additional Product Information
Commodity Code -
85365080
Country of Origin -
CZ
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39122205
Technical Specification
Rated operation current Ie at AC-15, 230 V -
6 Ampere
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
2
