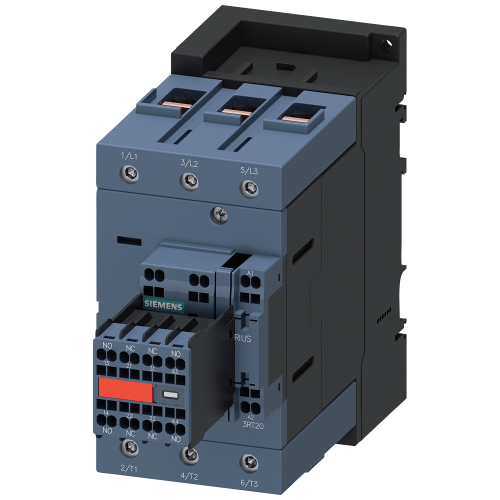

3RT20463NB343MA0

Contactor, AC-3e, 95 A/45 kW/400 V, 3-pole, 20-33 V AC/DC, 2 NO+2 NC, screw terminal/spring-type terminal

Manufacturer's No: 3RT2046-3NB34-3MA0     Manufacturer: Siemens
Contactor, AC-3e, 95 A/45 kW/400 V, 3-pole, 20-33 V AC/DC, 2 NO+2 NC, screw terminal/spring-type terminal

Availability On Request

£453.36
  • Power contactor for AC-3e/AC-3 applications
  • Rated at 95 A and 45 kW at 400 V
  • 3-pole configuration
  • Operating voltage of 20-33 V AC/DC at 50/60 Hz
  • Integrated varistor for protection
  • Auxiliary contacts: 2 NO + 2 NC
  • Main circuit with screw terminals
  • Control and auxiliary circuit with spring-loaded terminals
  • Size: S3
  • Captive auxiliary switch included

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.23
On Request
Price £0.02
On Request

Spare part

Question and Answer (Q&A video)
Presentation video
Product video
Product video
Instructional video


Product

Manufacturer Material ID -
3RT2046-3NB34-3MA0
Net Weight -
1.89kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
UNSPSC -
39121529

Technical Specification

Number of normally closed contacts as main contact -
-
Rated operation power at AC-4, 400 V -
- Kilowatt
Rated control supply voltage Us at AC 50HZ -
20 Volt
Rated control supply voltage Us at AC 60HZ -
20 Volt
Rated control supply voltage Us at DC -
20 Volt
Modular version -
Number of auxiliary contacts as normally closed contact -
2
Number of auxiliary contacts as normally open contact -
2
Number of main contacts as normally open contact -
3
Rated control supply voltage at AC 50 Hz -
20 Volt
Rated control supply voltage at AC 60 Hz -
20 Volt
Rated control supply voltage at DC -
20 Volt
Rated operation current Ie at AC-1, 400 V -
130 Ampere
Rated operation current Ie at AC-3, 400 V -
95 Ampere
Rated operation current Ie at AC-4, 400 V -
80 Ampere
Rated operation power at AC-3, 400 V -
45 Kilowatt
Rated operation power NEMA -
55.16240625 Kilowatt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC

Availability On Request

£453.36
