3RT23373NB30

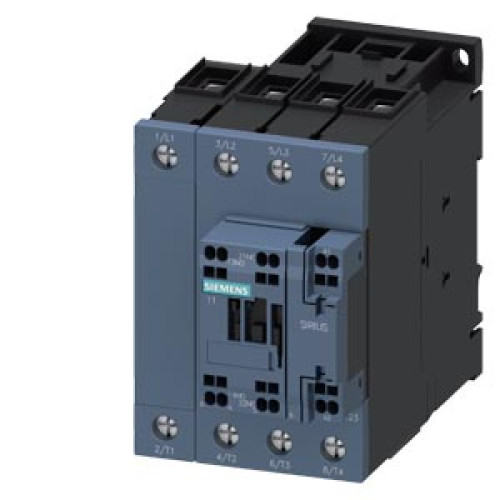

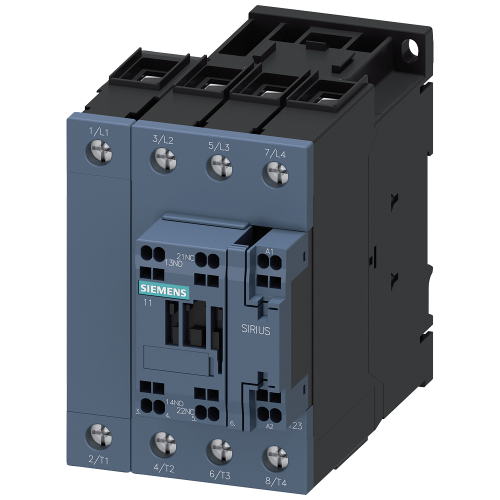

Contactor, AC-1, 110 A/400 V/40 °C, S2, 4-pole, 20-33 V AC/DC, 1 NO+1 NC

Manufacturer's No: 3RT2337-3NB30     Manufacturer: Siemens
Contactor, AC-1, 110 A/400 V/40 °C, S2, 4-pole, 20-33 V AC/DC, 1 NO+1 NC

Availability On Request

£391.71
  • Contactor for AC-1 applications
  • Rated current: 110 A
  • Rated voltage: 400 V at 40°C
  • 4-pole configuration
  • Control voltage: 20-33 V AC/DC, 50/60 Hz
  • Integrated varistor for protection
  • Auxiliary contacts: 1 NO + 1 NC
  • Main circuit: Screw terminal
  • Auxiliary and control circuit: Spring-loaded terminal
  • Size: S2

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.23
On Request
Price £0.02
On Request

Spare part

Question and Answer (Q&A video)
Presentation video
Instructional video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RT2337-3NB30
Net Weight -
1.27kg

Additional Product Information

Commodity Code -
85364190
Country of Origin -
DE
UNSPSC -
39121529

Technical Specification

Modular version -
Number of auxiliary contacts as normally closed contact -
1
Number of auxiliary contacts as normally open contact -
1
Number of main contacts as normally open contact -
4
Rated control supply voltage at AC 50 Hz -
20 Volt
Rated control supply voltage at AC 60 Hz -
20 Volt
Rated control supply voltage at DC -
20 Volt
Rated operation current Ie at AC-1, 400 V -
110 Ampere
Rated operation current Ie at AC-3, 400 V -
38 Ampere
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
AC/DC
