3SE53240SD211AE5

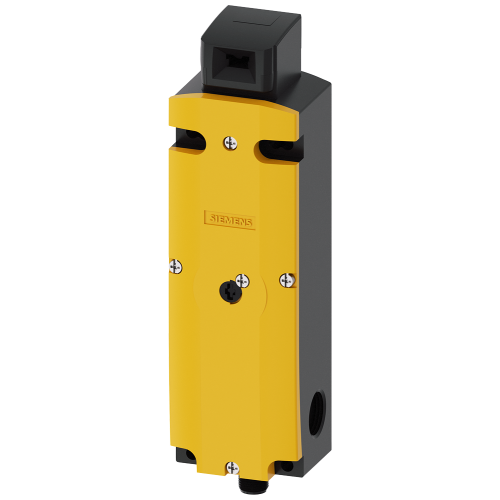

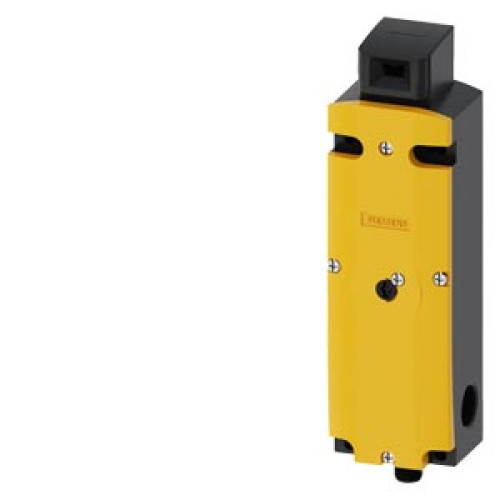

Safety switch, locking force 1300 N, magnet voltage 24 V DC

Manufacturer's No: 3SE5324-0SD21-1AE5     Manufacturer: Siemens
Safety switch, locking force 1300 N, magnet voltage 24 V DC

Availability Back Order

£273.93
  • Safety switch with tumbler without magnet monitoring
  • Locking force: 1300 N
  • Compatible with SIMATIC ET200eco PN-F
  • 5 approach directions
  • Spring-locked mechanism
  • Magnet voltage: 24 V DC
  • Wired with M12 connector, 8-pole
  • Monitoring: 2 x door, 0 x interlock
  • PIN configuration: PIN1=11, PIN2=12, PIN3=21, PIN4=22, PIN5=n.a., PIN6=n.a., PIN7=E1, PIN8=E2
  • Matching separate Actuator: 3SE5000-0AV0 /-0AW..

Read more

  • Connection accessory for SIMATIC ET200eco PN-F: Y cable 6ES7194-6KC00-0XA0, Cable 8-pole 3SX5601-3SV18
  • Actuator must be ordered separately

Selectable mandatory product

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3SE5324-0SD21-1AE5
Net Weight -
0.50kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Rated control supply voltage Us magnet drive at AC 50 Hz -
- Volt
Rated control supply voltage Us magnet drive at AC 60 Hz -
- Volt
Rated operation current Ie at AC-15, 125 V -
- Ampere
Rated operation current Ie at DC-13, 125 V -
- Ampere
Number of contacts as normally closed contact -
-
Number of contacts as normally open contact -
-
Number of contacts as change-over contact -
-
Degree of protection (NEMA) -
UN
Material housing -
Plastic
Coating housing -
Uncoated
Type of electric connection -
Cable entry metrical
Degree of protection (IP) -
IP66/IP67
Type of interface -
None
Rated control supply voltage Us magnet drive at DC -
24 Volt
Guard locking force -
1300 Newton
Ambient temperature during operating -
-25 Degrees celsius
Clamping force -
1300 Newton
Construction type housing -
Special construction
Degree of protection (IP rating) -
IP66/IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
43.5 Millimetre
Housing material -
Plastic
Interface type -
None
Length of sensor -
198 Millimetre
Number of safety auxiliary contacts -
2
Rated operation current Ie at AC-15, 24 V -
1.5 Ampere
Rated operation current Ie at DC-13, 24 V -
1.5 Ampere
Suitable for safety functions -
Type of guard locking -
Quiescent current principle
Type of interface for safety communication -
None
Type of switching contact -
Slow-action switch
Width sensor -
54 Millimetre

Availability Back Order

£273.93
