3SE53240SH211AE4

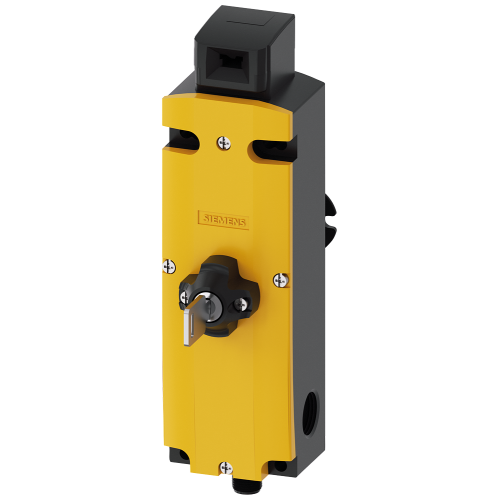

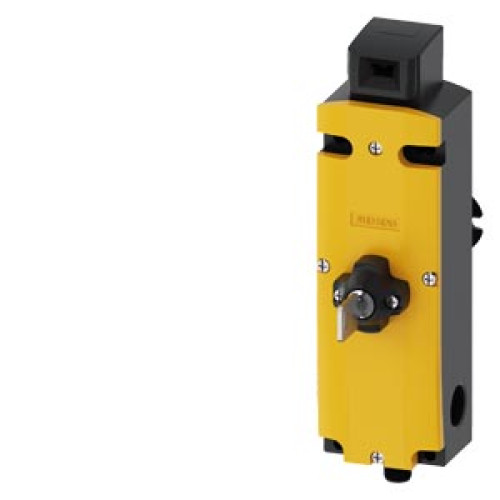

Safety switch, locking force 1300N, solenoid voltage 24V, M12 plug, 8-pole

Manufacturer's No: 3SE5324-0SH21-1AE4     Manufacturer: Siemens
Safety switch, locking force 1300N, solenoid voltage 24V, M12 plug, 8-pole

Availability Back Order

£393.70
  • Safety switch with tumbler for SIMATIC ET200eco PN-F
  • Plastic construction with locking force of 1300 N
  • Spring-locked with escape release at the back
  • Auxiliary release with lock on the front
  • Magnet voltage of 24 V
  • Monitoring for 1x door and 1x interlock
  • M12 connector with 8 poles: Pin1=11, Pin2=12, Pin3=41, Pin4=42, Pin5=n.a., Pin6=n.a., Pin7=E1, Pin8=E2
  • Actuator model: 3SE5000-0AV0 /-0AW.. (must be ordered separately)
  • Connection accessories available, such as Y cable 6ES7194-6KC00-0XA0 and Cable 8-pole 3SX5601-3SV18

Selectable mandatory product

Accessories

Product video
Product video


Product

Manufacturer Material ID -
3SE5324-0SH21-1AE4
Net Weight -
0.85kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
39122213

Technical Specification

Rated operation current Ie at AC-15, 230 V -
- Ampere
Rated operation current Ie at DC-13, 230 V -
- Ampere
Rated control supply voltage Us magnet drive at AC 50 Hz -
- Volt
Rated control supply voltage Us magnet drive at AC 60 Hz -
- Volt
Rated operation current Ie at AC-15, 125 V -
- Ampere
Rated operation current Ie at DC-13, 125 V -
- Ampere
Number of contacts as normally closed contact -
-
Number of contacts as normally open contact -
-
Number of contacts as change-over contact -
-
Degree of protection (NEMA) -
UN
Material housing -
Plastic
Coating housing -
Uncoated
Type of electric connection -
Cable entry metrical
Degree of protection (IP) -
IP66/IP67
Type of interface -
None
Rated control supply voltage Us magnet drive at DC -
24 Volt
Guard locking force -
1300 Newton
Ambient temperature during operating -
-25 Degrees celsius
Clamping force -
1300 Newton
Construction type housing -
Special construction
Degree of protection (IP rating) -
IP66/IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
43.5 Millimetre
Housing material -
Plastic
Interface type -
None
Length of sensor -
198 Millimetre
Number of safety auxiliary contacts -
2
Rated operation current Ie at AC-15, 24 V -
1.5 Ampere
Rated operation current Ie at DC-13, 24 V -
1.5 Ampere
Suitable for safety functions -
Type of guard locking -
Quiescent current principle
Type of interface for safety communication -
None
Type of switching contact -
Slow-action switch
Width sensor -
54 Millimetre
