3SU10005JL010AA0

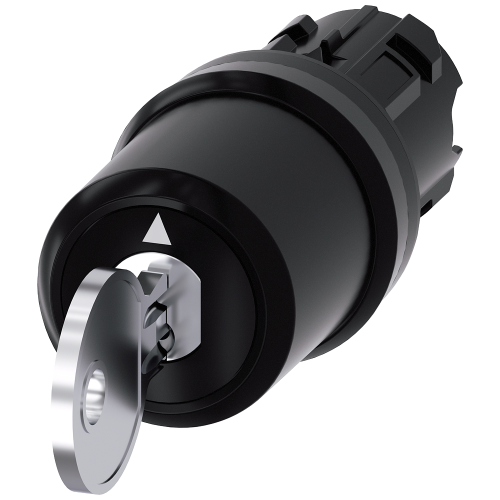

Key-operated switch CES, with monitoring, 22 mm, round, plastic, removal O

Manufacturer's No: 3SU1000-5JL01-0AA0     Manufacturer: Siemens
Key-operated switch CES, with monitoring, 22 mm, round, plastic, removal O

View 3D

Availability Back Order

£186.44
  • Siemens keyswitch with key monitoring
  • 22 mm round plastic design
  • Lock number: SSG10 with 2 keys
  • 3 switch positions: I-O-II
  • Latching mechanism
  • Actuating angle: 2x45°
  • Key removal/ejection in position O
  • Operating times: 10:30h, 12h, 13:30h

Mandatory additional product

Selectable mandatory product

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Instructional video
Instructional video
Instructional video
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Presentation video
Presentation video
Question and Answer (Q&A video)
Presentation video
Instructional video


Product

Manufacturer Material ID -
3SU1000-5JL01-0AA0
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
32151705

Technical Specification

Colour indicator light cap -
UN
Type of control element -
Key
Colour control element -
Silver
Degree of protection (NEMA) -
4X
Colour front ring -
Black
Construction type lens -
Rectangular
Degree of protection (IP), front side -
IP54
Height opening -
61 Millimetre
Hole diameter -
22.3 Millimetre
Material front ring -
Plastic
Number of switch positions -
3
Width opening -
29.5 Millimetre
With front ring -

Availability Back Order

£186.44
