3SU18020AP002AB1

Enclosure for command devices, 22 mm, round

Manufacturer's No: 3SU1802-0AP00-2AB1     Manufacturer: Siemens

Availability Back Order

£77.10

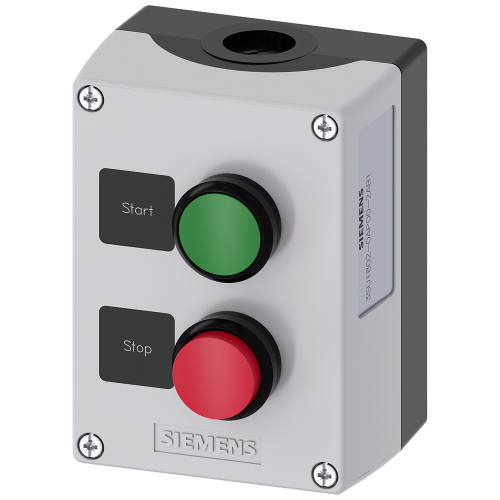

  • Enclosure for command devices
  • 22 mm round plastic enclosure
  • Gray top part
  • 2 control points:
    • B=Pushbutton green with label "Start", 1 NO, screw terminal
    • A=Pushbutton red (raised) with label "Stop", 1 NC, screw terminal
  • Floor mounting
  • 1xM20 hole each on top and bottom
  • Labels glued in

Selectable mandatory product

Accessories

Component part

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Product video
Instructional video
Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3SU1802-0AP00-2AB1
Net Weight -
0.39kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
26101601

Technical Specification

Degree of protection (NEMA) -
UN
Material housing -
Plastic
Rated control supply voltage Us at AC 50HZ -
5 Volt
Rated control supply voltage Us at AC 60HZ -
5 Volt
Rated control supply voltage Us at DC -
5 Volt
Degree of protection (IP) -
IP67/IP69K
Colour housing cover -
Grey
Degree of protection (IP rating) -
IP67/IP69K
Housing material -
Plastic
Number of command positions -
2
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
2
Number of indicator lights -
0
Number of key switches -
0
Number of mushroom-shaped push-buttons -
0
Number of push buttons -
2
Number of selector switches -
0
Rated control supply voltage at AC 50 Hz -
5 Volt
Rated control supply voltage at AC 60 Hz -
5 Volt
Rated control supply voltage at DC -
5 Volt

Availability Back Order

£77.10
