3SU18030AT002AB1

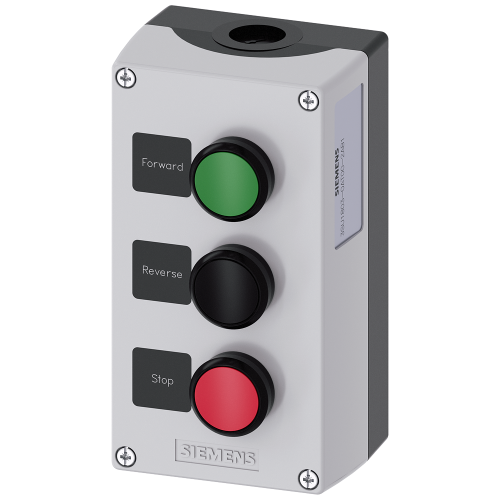

Enclosure for command devices, 22 mm, round

Manufacturer's No: 3SU1803-0AT00-2AB1     Manufacturer: Siemens

Availability Back Order

£94.17
  • Enclosure for command devices
  • Size: 22 mm round
  • Material: Plastic, gray top part
  • Control points: 3 plastic
  • Control points details:
    • C=Pushbutton green, label: Forward, 1 NO, 1 NC, screw terminal
    • B=Pushbutton black, label: Reverse, 1 NO, 1 NC, screw terminal
    • A=Pushbutton red, label: Stop, 1 NO, 1 NC, screw terminal
  • C=Pushbutton green, label: Forward, 1 NO, 1 NC, screw terminal
  • B=Pushbutton black, label: Reverse, 1 NO, 1 NC, screw terminal
  • A=Pushbutton red, label: Stop, 1 NO, 1 NC, screw terminal
  • Mounting: Floor mounting
  • Cable entry: 1xM20 each on top and bottom

Read more

  • Labels: Glued in

Selectable mandatory product

Accessories

Component part

Question and Answer (Q&A video)
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Product video
Instructional video
Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Instructional video


Product

Manufacturer Material ID -
3SU1803-0AT00-2AB1
Net Weight -
0.52kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
26101601

Technical Specification

Degree of protection (NEMA) -
UN
Material housing -
Plastic
Rated control supply voltage Us at AC 50HZ -
5 Volt
Rated control supply voltage Us at AC 60HZ -
5 Volt
Rated control supply voltage Us at DC -
5 Volt
Degree of protection (IP) -
IP67/IP69K
Colour housing cover -
Grey
Degree of protection (IP rating) -
IP67/IP69K
Housing material -
Plastic
Number of command positions -
3
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
3
Number of contacts as normally open contact -
3
Number of indicator lights -
0
Number of key switches -
0
Number of mushroom-shaped push-buttons -
0
Number of push buttons -
3
Number of selector switches -
0
Rated control supply voltage at AC 50 Hz -
5 Volt
Rated control supply voltage at AC 60 Hz -
5 Volt
Rated control supply voltage at DC -
5 Volt
