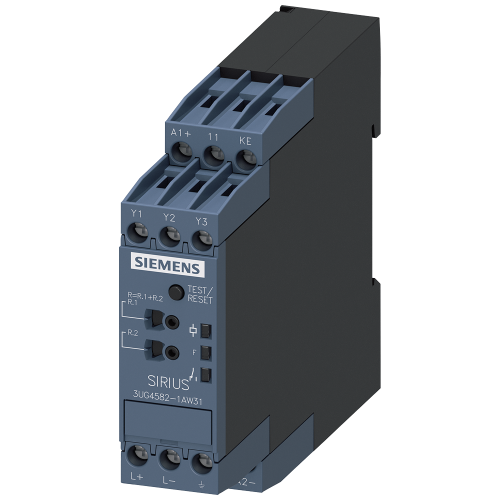

3UG45821AW31

INSULATION MONIT 250VAC/300VDC/1-100KOHM

Manufacturer's No: 3UG4582-1AW31     Manufacturer: Siemens

Availability Back Order

£318.14
  • Insulation monitoring relay for ungrounded (IT) networks
  • Suitable for networks up to 250 V AC, 15-400 Hz and up to 300 V DC
  • Measuring range: 1-100 kohm
  • Supply voltage: 24-240 V AC/DC
  • Compact size: 22.5 mm
  • 1 changeover contact with screw terminal


Product

Manufacturer Material ID -
3UG4582-1AW31
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121529

Technical Specification

Function -
For three-phase supply system
Rated frequency -
15 Hertz
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Voltage type for actuating -
AC/DC
Depth -
100 Millimetre
Error registration possible -
Height -
78 Millimetre
Line capacity -
10 Micro-Farad
Number of contacts as change-over contact -
1
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Response value impedance 1 -
1 Kilo-Ohm
Type of electric connection -
Screw connection
Width -
22.5 Millimetre

Availability Back Order

£318.14
