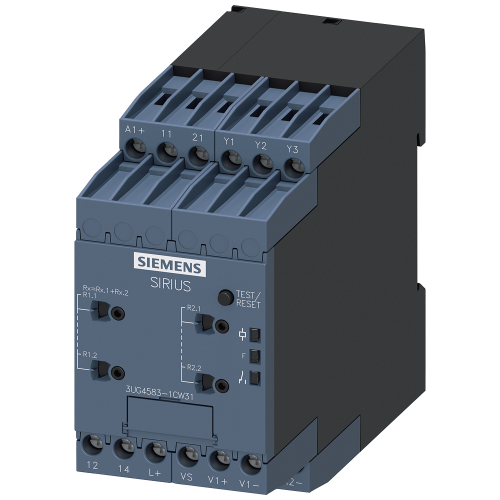

3UG45831CW31

INSUL. MONITOR 400VAC/600VDC/1-200KOHM

Manufacturer's No: 3UG4583-1CW31     Manufacturer: Siemens
INSUL. MONITOR 400VAC/600VDC/1-200KOHM

Availability Back Order

£702.57
  • Insulation monitoring relay for non-grounded (IT) networks
  • Suitable for networks up to 400 V AC and 600 V DC
  • Measuring range: 1-100 kOhm or 2-200 kOhm
  • Supply voltage: 24-240 V AC/DC
  • Width: 45 mm
  • 1 + 1 or 2 changeover contacts
  • Screw terminal connections


Product

Manufacturer Material ID -
3UG4583-1CW31
Net Weight -
0.28kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
UNSPSC -
39121529

Technical Specification

Function -
For three-phase supply system
Rated frequency -
15 Hertz
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at AC 60 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Voltage type for actuating -
AC/DC
Depth -
100 Millimetre
Error registration possible -
Height -
78 Millimetre
Line capacity -
20 Micro-Farad
Number of contacts as change-over contact -
2
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Response value impedance 1 -
1 Kilo-Ohm
Response value impedance 2 -
2 Kilo-Ohm
Type of electric connection -
Screw connection
Width -
45 Millimetre

Availability Back Order

£702.57
