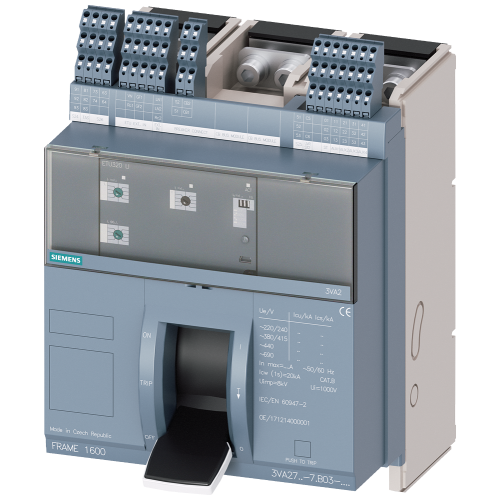

3VA27126AB030AA0

fixed-mounted molded case circuit breaker w. handle frame 1600; 4AUX and trip alarm switch S24; Icu H Icu=85kA @ 415V, 3-pole ETU3

Manufacturer's No: 3VA2712-6AB03-0AA0     Manufacturer: Siemens
fixed-mounted molded case circuit breaker w. handle frame 1600; 4AUX and trip alarm switch S24; Icu H Icu=85kA @ 415V, 3-pole ETU320, LI, In=1250...

Availability On Request

£3,865.30
  • Fixed-mounted molded case circuit breaker with handle frame 1600
  • 3-pole ETU320 with Icu=85kA @ 415V and In=1250A
  • Trip alarm switch S24 with rotary coding switch Ir=500-1250A and Ii=1.5-15 x In
  • N conductor protection adjustable with external CT, up to 200%
  • Mechanical calling feature included
  • No communication connection or measurement function
  • Does not include additional alarm switch assembly, 2nd auxiliary release, or 1st auxiliary release
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3VA2712-6AB03-0AA0
Net Weight -
21.89kg

Additional Product Information

Commodity Code -
85363090
Country of Origin -
CZ
UNSPSC -
39121601

Technical Specification

Overload release current setting -
500 Ampere
Rated voltage -
690 Volt
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
85 kiloampere
Adjustment range undelayed short-circuit release -
1875 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Number of auxiliary contacts as change-over contact -
4
Number of poles -
3
Power loss -
141 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
85 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Switched-off indicator available -
Type of electrical connection of main circuit -
Rail connection

Availability On Request

£3,865.30
