3VA51505EC310AA0

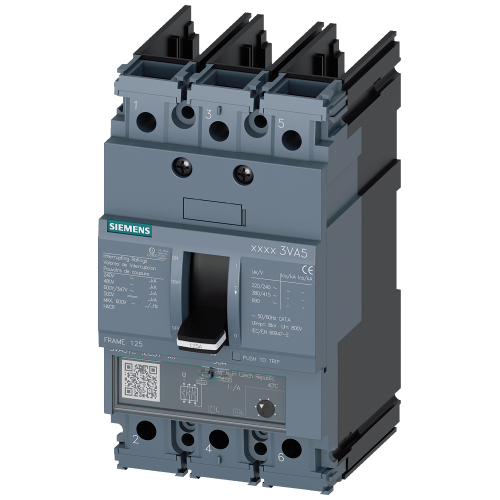

Circuit breaker 3VA5 UL frame 125 breaking capacity class M 35 kA @ 480 V 3-pole

Manufacturer's No: 3VA5150-5EC31-0AA0     Manufacturer: Siemens
Circuit breaker 3VA5 UL frame 125 breaking capacity class M 35 kA @ 480 V 3-pole

View 3D

Availability Back Order

£231.06
  • Circuit breaker 3VA5 UL Frame 125
  • Breaking capacity: 35 kA @ 480 V
  • 3-pole, line protection
  • Overload protection: In=50 A
  • Short-circuit protection: Ir=50 A
  • Short-circuit protection range: Ii=5...10 x In without connection

Accessories

Question and Answer (Q&A video)
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3VA5150-5EC31-0AA0
Net Weight -
0.95kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Adjustment range short-term delayed short-circuit release -
- Ampere
Degree of protection (IP) -
IP40
Position of connection for main current circuit -
Other
Type of electrical connection of main circuit -
Other
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
55 kiloampere
Adjustment range undelayed short-circuit release -
250 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP40
Device construction -
Built-in device fixed built-in technique
Motor drive optional -
Number of auxiliary contacts as change-over contact -
0
Number of auxiliary contacts as normally closed contact -
0
Number of auxiliary contacts as normally open contact -
0
Number of poles -
3
Overload release current setting -
50 Ampere
Power loss -
12 Watt
Rated permanent current Iu -
50 Ampere
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
55 kiloampere
Rated voltage -
690 Volt
Suitable for DIN rail (top hat rail) mounting -
Type of control element -
Rocker lever

Availability Back Order

£231.06
