3WL13504EG451AA4

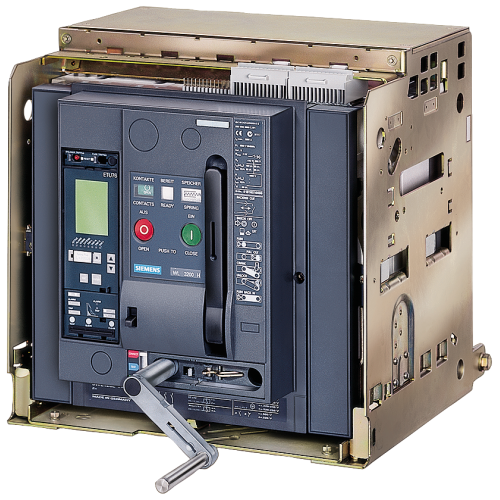

withdrawable circuit breaker without guide frame 4-pole, size III, IEC In=5000A to 690V, AC50/60Hz I

Manufacturer's No: 3WL1350-4EG45-1AA4     Manufacturer: Siemens
withdrawable circuit breaker without guide frame 4-pole, size III, IEC In=5000A to 690V, AC50/60Hz I

Availability Back Order

£46,308.52
  • Withdrawable circuit breaker without guide frame
  • 4-pole, size III
  • Rated current: 5000A
  • Rated voltage: 690V AC, 50/60Hz
  • Ultimate short-circuit breaking capacity: 100kA at 500V
  • Overcurrent release: ETU 45 LSING, adjustable 0.4-1
  • Rear connection: horizontal
  • Ground fault protection included
  • Optional: Communication/measuring functions/ZSS
  • Manual operating mechanism with storage

Read more

  • No 1st or 2nd auxiliary release
  • Configuration: 4 Normally Open + 4 Normally Closed contacts
Product video


Product

Manufacturer Material ID -
3WL1350-4EG45-1AA4
Net Weight -
106.00kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
CZ
Export Control Regulations -
EAR99 / N
UNSPSC -
39121601

Technical Specification

Rated voltage -
690 Volt
Position of connection for main current circuit -
Other
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz -
100 kiloampere
Adjustment range undelayed short-circuit release -
7500 Ampere
Complete device with protection unit -
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional -
Integrated earth fault protection -
Motor drive optional -
Number of auxiliary contacts as normally closed contact -
4
Number of auxiliary contacts as normally open contact -
4
Number of poles -
4
Power loss -
1050 Watt
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz -
100 kiloampere
Suitable for DIN rail (top hat rail) mounting -
Switched-off indicator available -
Type of control element -
Push button

Availability Back Order

£46,308.52
