4AC37400

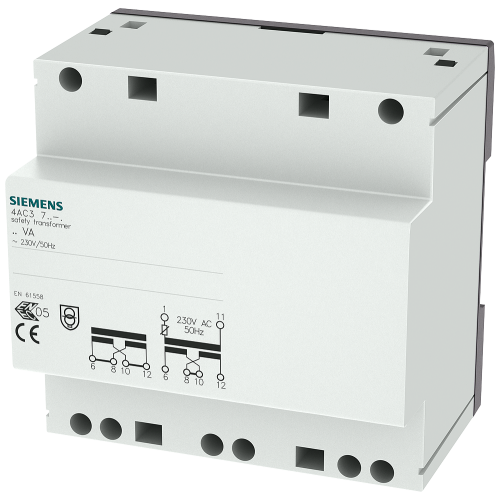

Safety transformer, 40 VA primary 230 V AC, 50 Hz, secondary 2x12 V/24 V AC with PTC protection.

Manufacturer's No: 4AC3740-0     Manufacturer: Siemens
Safety transformer, 40 VA primary 230 V AC, 50 Hz, secondary 2x12 V/24 V AC with PTC protection.

Availability On Request

£203.70
  • Safety transformer
  • 40VA
  • Primary: 230V AC, 50Hz
  • Secondary: 2x12V/24V AC
  • With PTC fuse
  • 5 MW++


Product

Manufacturer Material ID -
4AC3740-0
Net Weight -
1.19kg

Additional Product Information

Commodity Code -
85044082
Country of Origin -
DE
Export Control Regulations -
N / N
UNSPSC -
32121704

Technical Specification

Secondary voltage 3 -
- Volt
Secondary amperage 3 -
- Ampere
Max. output current -
3.3 Ampere
Height -
64 Millimetre
Length -
90 Millimetre
Max. output power -
40 Watt
Max. power loss -
7.7 Watt
Maximum output current -
3.3 Ampere
Modular version -
Primary voltage -
230 Volt
Secondary amperage 1 -
3.3 Ampere
Secondary amperage 2 -
1.6 Ampere
Secondary voltage 1 -
12 Volt
Secondary voltage 2 -
24 Volt
Short-circuit protected -
Temperature protection -
Type of transformer -
Safety transformer
Width -
90 Millimetre
Width in number of modular spacings -
5

Availability On Request

£203.70
