4AP21428BC400HA0

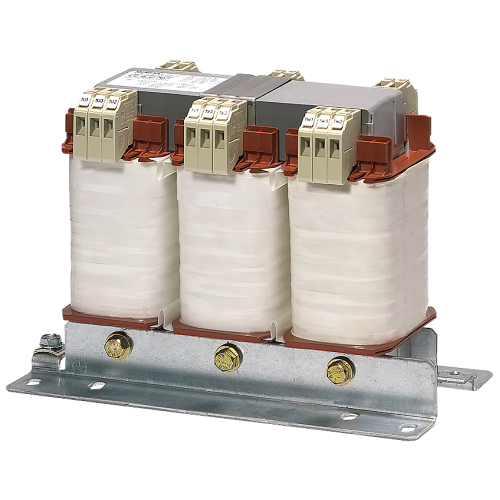

TRANSFORMER SITAS; PHASES:3; PN/PN(S6)(KVA):1 /3,5; UPRI(V):Y500-400/D289-230; USEC(V):Y 400 / D 230

Manufacturer's No: 4AP2142-8BC40-0HA0     Manufacturer: Siemens
TRANSFORMER SITAS; PHASES:3; PN/PN(S6)(KVA):1 /3,5; UPRI(V):Y500-400/D289-230; USEC(V):Y 400 / D 230

Availability On Request

£958.00
  • Transformer Type: Control Circuit Transformer, Isolation Transformer
  • Phases: 3
  • Power Rating: 1 kVA (Primary) / 3.5 kVA (Secondary)
  • Primary Voltage: Y 500-400 V / D 289-230 V
  • Secondary Voltage: Y 400 V / D 230 V
  • Current Rating: 1.44-2.50 A
  • Frequency: 50-60 Hz
  • Vector Group / Shield Winding: IIIIII0 / 0
  • Temperature Class / Insulation Class: 40 / B
  • Enclosure: IP00

Read more

  • Type of Terminals: Screw / Tab Connection
  • Installation: Screw
  • Standards: EN 61558-2-1, -2-2, -2-4, UL/CSA-Recognized


Product

Manufacturer Material ID -
4AP2142-8BC40-0HA0
Net Weight -
11.33kg

Additional Product Information

Commodity Code -
85043200
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121002

Technical Specification

Primary voltage 10 -
- Volt
Primary voltage 5 -
- Volt
Primary voltage 6 -
- Volt
Primary voltage 7 -
- Volt
Primary voltage 8 -
- Volt
Primary voltage 9 -
- Volt
Secondary voltage 10 -
- Volt
Secondary voltage 3 -
- Volt
Secondary voltage 4 -
- Volt
Secondary voltage 5 -
- Volt
Secondary voltage 6 -
- Volt
Secondary voltage 7 -
- Volt
Secondary voltage 8 -
- Volt
Secondary voltage 9 -
- Volt
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP00
Conductor material -
Other
Degree of protection (IP rating) -
IP00
Depth -
168 Millimetre
Height -
168 Millimetre
Primary voltage 1 -
500 Volt
Primary voltage 2 -
400 Volt
Primary voltage 3 -
289 Volt
Primary voltage 4 -
230 Volt
Rated power -
1000 Voltampere
Relative short circuit voltage -
5.38 Percentage
Secondary voltage 1 -
400 Volt
Secondary voltage 2 -
230 Volt
Type of insulation material acc. IEC 85 -
B
Width -
219 Millimetre
Wiring system -
Other

Availability On Request

£958.00
