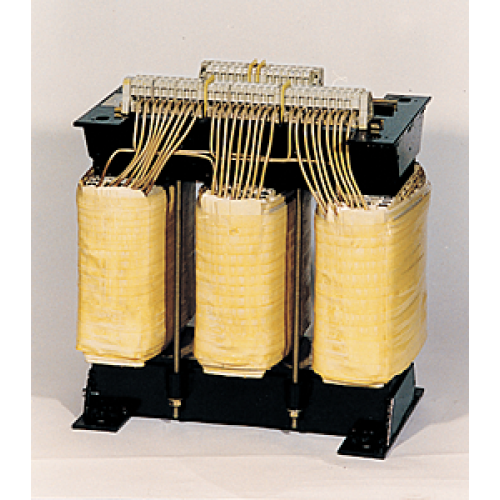

4AP30428CC400HA0

TRANSFORMER SITAS; PHASES:3; PN/PN(S6)(KVA):4 /20; UPRI(V):Y500-440-380+/-20/D289- 254-220+/-11; USE

Manufacturer's No: 4AP3042-8CC40-0HA0     Manufacturer: Siemens
TRANSFORMER SITAS; PHASES:3; PN/PN(S6)(KVA):4 /20; UPRI(V):Y500-440-380+/-20/D289- 254-220+/-11; USE

Availability On Request

£2,370.00
  • Transformer Type: Control Circuit Transformer, Isolation Transformer
  • Phases: 3
  • Power Rating: 4 kVA (Primary) / 20 kVA (Secondary)
  • Primary Voltage: Y500-440-380 +/- 20 V / D289-254-220 +/- 11 V
  • Secondary Voltage: Y 400 V / D 230 V
  • Current: 5.8-11.6 A
  • Frequency: 50-60 Hz
  • Vector Group / Shielding: IIIIII0 / 0
  • Temperature Class / Insulation Class: 40 / B
  • Enclosure: IP00

Read more

  • Type of Terminals: Screw / Tab Connection
  • Installation: Screw
  • Compliance: EN 61558-2-1, -2-2, -2-4, UL/CSA-Recognized


Product

Manufacturer Material ID -
4AP3042-8CC40-0HA0
Net Weight -
50.40kg

Additional Product Information

Commodity Code -
85043200
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121002

Technical Specification

Secondary voltage 10 -
- Volt
Secondary voltage 3 -
- Volt
Secondary voltage 4 -
- Volt
Secondary voltage 5 -
- Volt
Secondary voltage 6 -
- Volt
Secondary voltage 7 -
- Volt
Secondary voltage 8 -
- Volt
Secondary voltage 9 -
- Volt
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP00
Conductor material -
Other
Degree of protection (IP rating) -
IP00
Depth -
271 Millimetre
Height -
271 Millimetre
Primary voltage 1 -
520 Volt
Primary voltage 10 -
300 Volt
Primary voltage 2 -
500 Volt
Primary voltage 3 -
480 Volt
Primary voltage 4 -
460 Volt
Primary voltage 5 -
440 Volt
Primary voltage 6 -
420 Volt
Primary voltage 7 -
400 Volt
Primary voltage 8 -
380 Volt
Primary voltage 9 -
360 Volt
Rated power -
4000 Voltampere
Relative short circuit voltage -
2.83 Percentage
Secondary voltage 1 -
400 Volt
Secondary voltage 2 -
230 Volt
Type of insulation material acc. IEC 85 -
B
Width -
300 Millimetre
Wiring system -
Other

Availability On Request

£2,370.00
