4AT30324TT100FA0

TRANSFORMER SITAS; PHASES:1; PN/PN(S6)(KVA):4 /16; UPRI(V):230+/-5%; USEC(V):230; ISEC(A):17,4; F(HZ

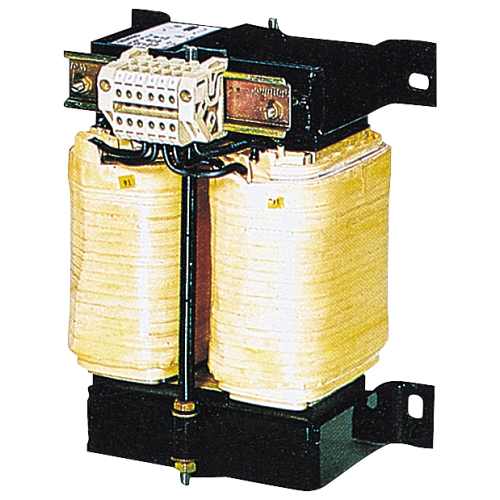

Manufacturer's No: 4AT3032-4TT10-0FA0     Manufacturer: Siemens
TRANSFORMER SITAS; PHASES:1; PN/PN(S6)(KVA):4 /16; UPRI(V):230+/-5%; USEC(V):230; ISEC(A):17,4; F(HZ

Availability Back Order

£1,380.00
  • Transformer Type: Control Circuit Transformer, Isolation Transformer
  • Phases: 1
  • Power Rating: 4 kVA Primary / 16 kVA Secondary
  • Primary Voltage: 230V +/- 5%
  • Secondary Voltage: 230V
  • Current Rating: 17.4A
  • Frequency: 50Hz to 60Hz
  • Vector Group / Shielding: II0 / 0
  • Temperature Class / Insulation Class: 55 / H
  • Enclosure: IP00

Read more

  • Type of Terminals: Screw Connection
  • Installation: Screw Mount
  • Standards: EN 61558-2-1, -2-2, -2-4
  • UL/CSA Recognized


Product

Manufacturer Material ID -
4AT3032-4TT10-0FA0
Net Weight -
33.10kg

Additional Product Information

Commodity Code -
85043200
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121002

Technical Specification

Primary voltage 10 -
- Volt
Primary voltage 4 -
- Volt
Primary voltage 5 -
- Volt
Primary voltage 6 -
- Volt
Primary voltage 7 -
- Volt
Primary voltage 8 -
- Volt
Primary voltage 9 -
- Volt
Secondary voltage 10 -
- Volt
Secondary voltage 2 -
- Volt
Secondary voltage 3 -
- Volt
Secondary voltage 4 -
- Volt
Secondary voltage 5 -
- Volt
Secondary voltage 6 -
- Volt
Secondary voltage 7 -
- Volt
Secondary voltage 8 -
- Volt
Secondary voltage 9 -
- Volt
Degree of protection (IP) -
IP00
Conductor material -
Other
Degree of protection (IP rating) -
IP00
Depth -
155 Millimetre
Height -
270 Millimetre
Primary voltage 1 -
242 Volt
Primary voltage 2 -
230 Volt
Primary voltage 3 -
218 Volt
Rated apparent power -
4000 Voltampere
Relative short circuit voltage -
2.8 Percentage
Secondary voltage 1 -
230 Volt
Type of insulation material acc. IEC 85 -
H
Width -
164 Millimetre

Availability Back Order

£1,380.00
