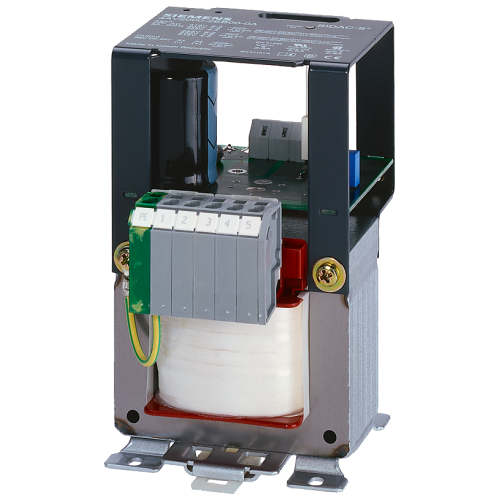

4AV20002EB000A

POWER SUPPLY; PHASES:1; PN(KW):0,06; UPRI(V):400-230+/-15; USEC(V DC):24; ISEC(A DC):2,5/3 (60/40 CE

Manufacturer's No: 4AV2000-2EB00-0A     Manufacturer: Siemens
POWER SUPPLY; PHASES:1; PN(KW):0,06; UPRI(V):400-230+/-15; USEC(V DC):24; ISEC(A DC):2,5/3 (60/40 CE

Availability Available to order

£290.46
  • Power Supply
    • Phases: 1
    • Power (kW): 0.06
    • Input Voltage: 400-230V +/- 15V
    • Output Voltage: 24V DC
    • Output Current: 2.5A DC / 3A DC (60% / 40% duty cycle)
    • Frequency: 50-60 Hz
    • Vector Group / Shielding: II0 / 0
    • Protection Class: I
    • Temperature Class / Insulation Class: 60°C / B
    • Efficiency: 5%
    • Enclosure Rating: IP00
    • Type of Terminals: Screw Connection
    • Installation: Screws / Mounting Rails
    • Standards: EN 61558-2-6, EN 61131-2
    • Safety Isolating Transformer


Product

Manufacturer Material ID -
4AV2000-2EB00-0A
Net Weight -
2.42kg

Additional Product Information

Commodity Code -
85043180
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121002

Technical Specification

Built-in height -
- Millimetre
Power consumption -
- Voltampere
Width in number of modular spacings -
-
Power output -
- Watt
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Rated supply voltage at AC 50 Hz -
- Volt
Rated supply voltage at AC 60 Hz -
- Volt
Rated supply voltage at DC -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 1 -
- Volt
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 1 -
- Ampere
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Built-in width -
84 Millimetre
Degree of protection (IP) -
IP00
1st secondary output voltage -
24 Volt
Degree of protection (IP rating) -
IP00
Depth -
100 Millimetre
Height -
142 Millimetre
Max. output current 1 -
2.5 Ampere
Rail mounting possible -
Recess width -
84 Millimetre
Type of electric connection -
Screw connection
Voltage type of supply voltage -
AC
Width -
84 Millimetre

Availability Available to order

£290.46
