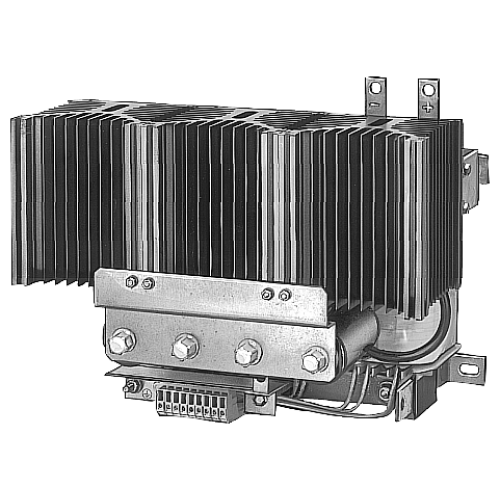

4AV38012EB000A

CURRENT SUPPLY (UNSCREENED); PHASES:3; PN(KW):3,6; UPRI(V):500-400(415); USEC(V DC):24 DC; ISEC(A DC

Manufacturer's No: 4AV3801-2EB00-0A     Manufacturer: Siemens
CURRENT SUPPLY (UNSCREENED); PHASES:3; PN(KW):3,6; UPRI(V):500-400(415); USEC(V DC):24 DC; ISEC(A DC

Availability On Request

POA
  • Phases: 3
  • Power Rating: 3.6 kW
  • Primary Voltage: 500-400 V (415 V)
  • Secondary Voltage: 24 V DC
  • Secondary Current: 150/180 A DC (60/40% duty cycle)
  • Frequency: 50-60 Hz
  • Vector Group/Shielding: YY6/0
  • Protection Class: I
  • Temperature Class/Insulation Class: 60/B
  • Efficiency: 4.2%

Read more

  • Enclosure Rating: IP00
  • Type of Terminals: Screw Connection
  • Installation: Screw Mounting
  • Standards: EN 61558, EN 61131-2
  • Application: Safety Isolating Transformer


Product

Manufacturer Material ID -
4AV3801-2EB00-0A
Net Weight -
59.00kg

Additional Product Information

Commodity Code -
85043180
Country of Origin -
CZ
Export Control Regulations -
N / N
UNSPSC -
39121002

Technical Specification

Built-in height -
- Millimetre
Power consumption -
- Voltampere
Width in number of modular spacings -
-
Power output -
- Watt
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Rated supply voltage at AC 50 Hz -
- Volt
Rated supply voltage at AC 60 Hz -
- Volt
Rated supply voltage at DC -
- Volt
Performance level acc. EN ISO 13849-1 -
UN
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 1 -
- Volt
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 1 -
- Ampere
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Built-in width -
380 Millimetre
Degree of protection (IP) -
IP00
Rail mounting possible -
1st secondary output voltage -
24 Volt
Degree of protection (IP rating) -
IP00
Depth -
370 Millimetre
Height -
340 Millimetre
Max. output current 1 -
150 Ampere
Recess width -
380 Millimetre
Type of electric connection -
Screw connection
Voltage type of supply voltage -
AC
Width -
380 Millimetre
