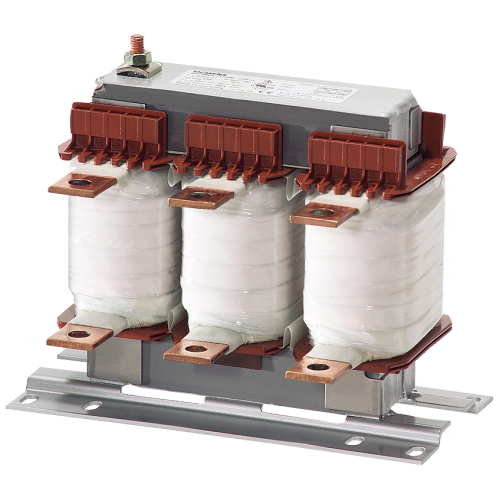

4EP39002US00

MAINS CHOKE F.FU; PHASES:3; UN1(V):480; ITHMAX 1(A) / F1(HZ):80 /60; I LN (A):72; UK(%):2; LN(MH):0,

Manufacturer's No: 4EP3900-2US00     Manufacturer: Siemens
MAINS CHOKE F.FU; PHASES:3; UN1(V):480; ITHMAX 1(A) / F1(HZ):80 /60; I LN (A):72; UK(%):2; LN(MH):0,

Availability Back Order

£614.00
  • Phases: 3
  • Input Voltage: 480V
  • Maximum Current: 72A
  • Frequency: 60Hz
  • Inductance: 0.176mH
  • Insulation Class: B
  • Enclosure: IP00
  • Terminal Type: Flat-type terminal
  • UL/CSA-Recognized
  • Suitable for use as a choke in electrical systems


Product

Manufacturer Material ID -
4EP3900-2US00
Net Weight -
6.87kg

Additional Product Information

Commodity Code -
85045095
Country of Origin -
CZ
Export Control Regulations -
N / N
UNSPSC -
32121702

Technical Specification

Max. rated current (Ith) at rated voltage DC -
- Ampere
Resonance frequency -
- Hertz
Rated clock frequency -
- kiloHertz
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP00
Degree of protection (IP rating) -
IP00
Max. rated operation voltage Ue -
480 Volt
Number of poles, primary side -
3
Rated current at AC -
72 Ampere
Rated inductance -
0.176 Millihenry
Rated operation frequency -
50 Hertz
Relative short circuit voltage -
2 Percentage
Suitable as commutation reactance coil -
Suitable as interference suppression reactance coil -
Suitable as net reactance coil -

Availability Back Order

£614.00
