4EU43210AW000A

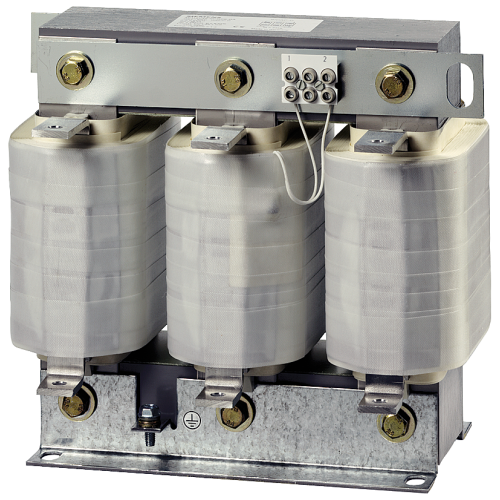

COMMUTATING CHOKE FOR CONVERTER; PHASES:3; UN1(V):400; ITHMAX 1(A) / F1(HZ):1310 /50; I LN (A):1179;

Manufacturer's No: 4EU4321-0AW00-0A     Manufacturer: Siemens
COMMUTATING CHOKE FOR CONVERTER; PHASES:3; UN1(V):400; ITHMAX 1(A) / F1(HZ):1310 /50; I LN (A):1179;

Availability Available to order

£9,249.40
  • Type: Commutating Choke for Converter
  • Phases: 3
  • Input Voltage (UN1): 400V
  • Maximum Current (ITHMAX): 1A
  • Frequency (F1): 50Hz
  • Rated Current (ILN): 1179A
  • Inductance (LN): 0.018mH
  • Voltage Drop (UK): 4%
  • Insulation Class: TA/ISOKL 40/H
  • Enclosure: IP00

Read more

  • Terminal Type: Flat-Type Terminal
  • Conforms to EN 61558-2-20 Standard


Product

Manufacturer Material ID -
4EU4321-0AW00-0A
Net Weight -
147.00kg

Additional Product Information

Commodity Code -
85045095
Country of Origin -
CZ
Export Control Regulations -
N / N
UNSPSC -
32121702

Technical Specification

Resonance frequency -
- Hertz
Rated clock frequency -
- kiloHertz
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP00
Degree of protection (IP rating) -
IP00
Max. rated current (Ith) at rated voltage DC -
1605.3 Ampere
Max. rated operation voltage Ue -
400 Volt
Number of poles, primary side -
3
Rated current at AC -
1179 Ampere
Rated inductance -
0.018 Millihenry
Rated operation frequency -
50 Hertz
Relative short circuit voltage -
4 Percentage
Suitable as commutation reactance coil -
Suitable as interference suppression reactance coil -
Suitable as net reactance coil -

Availability Available to order

£9,249.40
