50125676

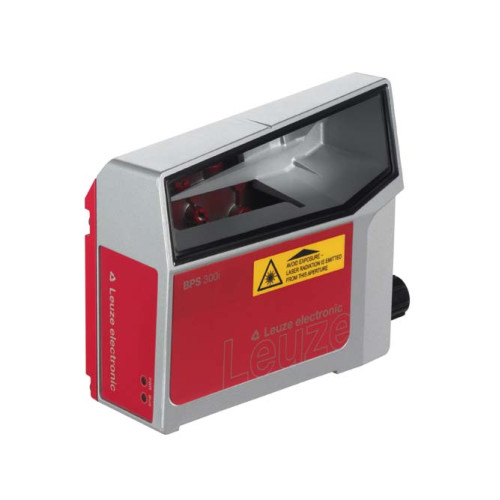

The Bar code positioning system from . Working range: 50 ... 170 mm; Light source: Laser; Measurement range: 0 ... 10.000.000 mm;

Manufacturer's No: BPS 304i SM 100     Manufacturer: Leuze
The Bar code positioning system from . Working range: 50 ... 170 mm; Light source: Laser; Measurement range: 0 ... 10.000.000 mm; Reproducibility (3 sigma): 0,15 mm; Supply voltage: 18 ... 30 V, DC;

Availability On Request

£1,676.00
  • Depth of field: 50
  • 170 mm
  • Light source: Laser
  • Reproducibility: 0.05 mm
  • Supply voltage: 18
  • 30 V DC
  • Switching element: Transistor, PNP
  • Interface: PROFIBUS DP
  • Dimensions: 100 mm x 108.7 mm x 48.3 mm
  • Display element: LED

Read more

  • Ambient temperature (operation): -5°C to 50°C

Accessories



Product

Manufacturer Material ID -
BPS 304i SM 100
Net Weight -
0.55kg

Additional Product Information

Commodity Code -
84719000
Country of Origin -
DE
UNSPSC -
32151705

Technical Specification

Max. output current -
- Milliampere
Material housing -
UN
Switching frequency -
- Hertz
Signalling interval -
- Hertz
Light dot -
- Square millimetre
Relative linearity deflection -
- Percentage
Relative accuracy of measurement -
- Percentage
Relative repeat accuracy -
- Percentage
Degree of protection (IP) -
UN
AWG-number -
-
Diameter sensor -
- Millimetre
Sensing mode -
UN
Measuring range length -
- Millimetre
Degree of protection (NEMA) -
UN
Thumbnail of product picture -
Ambient temperature -
-5 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP65
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Geometrical resolution -
10 Millimetre
Height of sensor -
108.7 Millimetre
Housing material -
Other
Laser protection class -
Class 1
Length of sensor -
48.3 Millimetre
Material of cable sheath -
Other
Material of optical surface -
Glass
Maximum output current -
60 Milliampere
Measuring principle for optical distance measurement -
Other
Operation agent-safety class -
Safety class 3
Scanning principle -
Other
Setting procedure -
Other
Standard for interfaces -
PROFIBUS
Supply voltage -
18 Volt
Type of analogy output -
Other
Type of electric connection -
Other
Type of light -
Laser diode, red light
Type of switch function -
Other
Type of switching output -
Other
Voltage type -
DC
Width sensor -
100 Millimetre
Leuze

Availability On Request

£1,676.00
