50129377

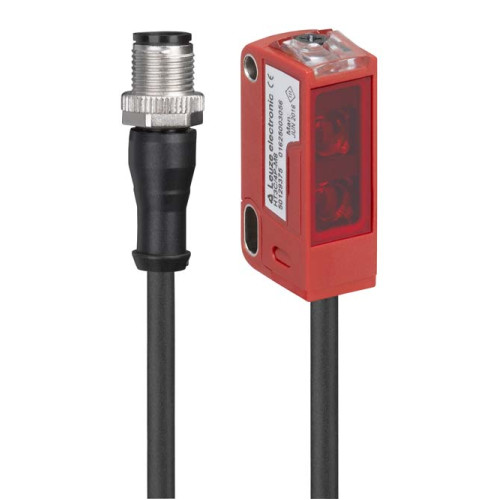

The Diffuse sensor with background suppression from . Operating range limit: 0,005 ... 0,45 m; Light source: LED, Red; Switching f

Manufacturer's No: HT3C/4P-200-M12     Manufacturer: Leuze
The Diffuse sensor with background suppression from . Operating range limit: 0,005 ... 0,45 m; Light source: LED, Red; Switching frequency: 1.000 Hz; Supply voltage: 10 ... 30 V, DC; Digital switchi

Availability On Request

£147.00
  • Operating Range Limit: 0.005m to 0.45m
  • Light Source: Red LED
  • Supply Voltage: 10V to 30V DC
  • Digital Switching Outputs: 2
  • Switching Output 1: Transistor, PNP, Light switching
  • Switching Output 2: Transistor, PNP, Dark switching
  • Switching Frequency: 1,000 Hz
  • Connection: 200mm Cable with M12 Metal 4-pin Connector
  • Housing Design: Cubic
  • Dimensions: 11.4mm x 34.2mm x 18.3mm

Read more

  • Housing Material: Plastic
  • Operational Controls: Multiturn Potentiometer
  • Ambient Temperature Range: -40°C to 60°C
  • Degree of Protection: IP67, IP69K

Accessories



Product

Manufacturer Material ID -
HT3C/4P-200-M12
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
41111926

Technical Specification

Type of interface for safety communication -
UN
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Light dot -
- Square millimetre
Min. reflector distance -
- Millimetre
Transmission range of the safety field -
- Metre
Type of safety acc. IEC 61496-1 -
UN
AWG-number -
-
Diameter sensor -
- Millimetre
Max. switching distance -
- Millimetre
Rated switching distance -
- Millimetre
Max. output current -
100 Milliampere
Material housing -
Plastic
Time of reaction -
5 Millisecond
Degree of protection (IP) -
IP67
Thumbnail of product picture -
Adjustment range -
15 Millimetre
Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
34.2 Millimetre
Housing material -
Plastic
Laser protection class -
None
Length of sensor -
18.3 Millimetre
Material of cable sheath -
Polyurethane (PUR)
Material of optical surface -
Plastic
Max. output current at protected output -
0 Milliampere
Maximum output current -
100 Milliampere
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
2
Operating distance -
5 Millimetre
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
10 Volt
Reaction time -
0.5 Millisecond
Sensing mode -
Light switching
Setting procedure -
Manual adjustment
Switching frequency -
1000 Hertz
Switching voltage of OSSD at state "high" -
0 Volt
Triangulation -
Background fade-out
Type of electric connection -
Cable with connector
Type of light -
Polarity free red light
Type of switch function -
Other
Type of switching output -
PNP
Voltage type -
DC
Wavelength of the sensor -
633 Nanometre
Width sensor -
11.4 Millimetre
Leuze

Availability On Request

£147.00
