532110

MS6N-EE-1/2-V110 On/off valve

Manufacturer's No: MS6N-EE-1/2-V110     Manufacturer: Festo
MS6N-EE-1/2-V110 On/off valve

Availability On Request

£22.26
  • Model: MS6N-EE-1/2-V110
  • Valve Type: On/off
  • Design Structure: Piston slide
  • Actuation Type: Electrical
  • Exhaust-air Function: Not throttleable
  • Manual Override: Detenting, Pushing
  • Reset Type: Mechanical spring
  • Valve Function: 3/2-way, closed, monostable
  • Operating Pressure: 4 BAR, 18 BAR
  • Standard Nominal Flow Rate: 7000 L/min

Read more

  • Duty Cycle: 100%
  • Coil Data: 110 V AC, 50/60 Hz, 3.0 VA pick-up power, 2.4 VA holding power
  • Permissible Voltage Fluctuations: +/- 10%
  • Operating Medium: Compressed air, Inert gases
  • Corrosion Resistance Class: 2 - Moderate corrosion stress
  • Temperature Range: -10°C to 60°C
  • Degree of Protection: IP65
  • Mounting: In-line installation, With accessories
  • Flow Direction: Non-reversible
  • Weight: 740 g
  • Pneumatic Connections: Port 1 & 2 - 1/2 NPT, Port 3 - G1/2
  • Pilot Air Supply: Internal
  • Electrical Connection: Type C, Plugs, DIN EN 175301-803, Square design
  • Material Seals: NBR
  • Material Housing: Die-cast aluminium


Product

Manufacturer Material ID -
MS6N-EE-1/2-V110
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
76169990
Country of Origin -
TR
UNSPSC -
32151705

Technical Specification

Accessory -
Type of accessory/spare part -

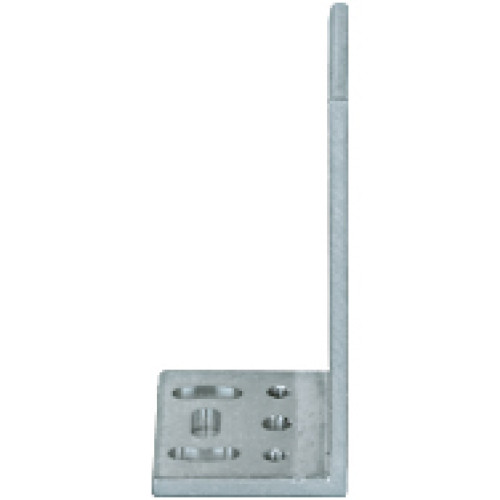

Holding bracket
Festo

Availability On Request

£22.26
