CPE10-M1BH-5/3ES-QS4-B Solenoid valve

Manufacturer's No: CPE10-M1BH-5/3ES-QS4-B     Manufacturer: Festo
CPE10-M1BH-5/3ES-QS4-B Solenoid valve

Availability Available to order

£19.81
  • Solenoid Valve Model: CPE10-M1BH-5/3ES-QS4-B
  • Valve Function: 5/3 exhausted
  • Type of Actuation: Electrical
  • Construction Width: 10 mm
  • Standard Nominal Flow Rate: 180 l/min
  • Operating Pressure: -0.09 MPa to 1 MPa
  • Design: Piston gate valve
  • Type of Reset: Mechanical spring
  • Approval: c UL us - Recognized (OL)
  • Degree of Protection: IP65

Read more

  • Nominal Size: 4 mm
  • Exhaust-air Function: With flow control option
  • Sealing Principle: Soft
  • Mounting Position: Optional
  • Manual Override: Detenting via accessory
  • Type of Piloting: Pilot actuated
  • Pilot Air Supply: External
  • Flow Direction: Reversible
  • Pilot Pressure: 0.3 MPa to 8 BAR
  • Switching Time Off: 20 ms
  • Switching Time On: 16 ms
  • Duty Cycle: 100% in conjunction with holding current reduction
  • Max. Test Pulse: 1200 ms (positive), 900 ms (negative)
  • Characteristic Coil Data: 24 V DC, 1.28 W
  • Permissible Voltage Fluctuations: -15% to +10%
  • Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Vibration Resistance: Transport application test with severity level 2
  • Shock Resistance: Shock test with severity level 2
  • Corrosion Resistance Class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) Conformity: VDMA24364-B1/B2-L
  • Media Temperature: -5°C to 50°C
  • Pilot Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Ambient Temperature: -5°C to 50°C
  • Electrical Connection: 2-pin
  • Type of Mounting: With through-hole
  • Pneumatic Connections: QS-4, M7
  • Materials: RoHS-compliant, NBR seals, Die-cast aluminium housing


Product

Manufacturer Material ID -
CPE10-M1BH-5/3ES-QS4-B
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
CN
Minimum Order Quantity -
1
UNSPSC -
26121629

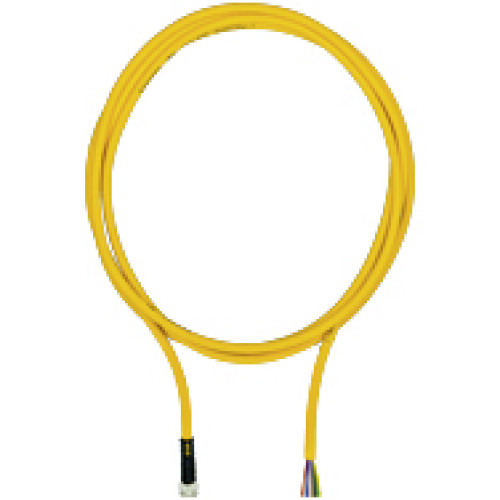

Technical Specification

Cable type -
Multi-core
Number of poles -
8
Continuity resistance -
3 Milli-Ohm
Material of contact surface -
Gold
Material of cable sheath -
Polyurethane (PUR)
Type of electrical connection, box-sided -
Free conductor end
Type of electrical connection, field-sided -
M8
Positioning cable feed, field-sided -
Straight
Type of plug-in contact, field sided -
Female (bus)
Material contact body -
CuZn
Colour cable sheath -
Yellow
Cable length -
2 Metre
Degree of protection (IP rating) -
IP67
Halogen free -
Permitted cable outer temperature after assembling without vibration -
-40 Degrees celsius
Rated current In -
1.5 Ampere
Rated voltage -
30 Volt
