CPE10-M1BH-5/3B-QS6-B Solenoid valve

Manufacturer's No: CPE10-M1BH-5/3B-QS6-B     Manufacturer: Festo
CPE10-M1BH-5/3B-QS6-B Solenoid valve

Availability Available to order

£35.55
  • Solenoid valve model: CPE10-M1BH-5/3B-QS6-B
  • Valve function: 5/3 pressurised
  • Type of actuation: Electrical
  • Width: 10 mm
  • Standard nominal flow rate: 300 l/min
  • Operating pressure: 0.3 - 0.8 MPa (3 - 8 bar)
  • Design: Piston gate valve
  • Type of reset: Mechanical spring
  • Approval: c UL us - Recognized (OL)
  • Degree of protection: IP65, with plug socket

Read more

  • Nominal size: 4 mm
  • Exhaust-air function: With flow control option
  • Sealing principle: Soft
  • Mounting position: Optional
  • Manual override: Detenting via accessory, non-detenting
  • Type of piloting: Pilot actuated, internal pilot air supply
  • Flow direction: Non-reversible
  • Switching time off: 20 ms, switching time on: 16 ms
  • Duty cycle: 100% with holding current reduction
  • Max. positive test pulse with 0 signal: 1200 ms, max. negative test pulse with 1 signal: 900 ms
  • Characteristic coil data: 24 V DC, 1.28 W
  • Permissible voltage fluctuations: -15% / +10%
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot medium: Lubricated operation possible
  • Vibration resistance: Transport application test with severity level 2
  • Shock resistance: Shock test with severity level 2
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Media temperature: -5°C to 50°C
  • Ambient temperature: -5°C to 50°C
  • Electrical connection: 2-pin
  • Type of mounting: With through-hole
  • Pilot exhaust ports: M3
  • Pneumatic connections: QS-6, M7
  • Materials: RoHS-compliant, NBR seals, die-cast aluminium housing


Product

Manufacturer Material ID -
CPE10-M1BH-5/3B-QS6-B
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
CN
Minimum Order Quantity -
1
UNSPSC -
26121629

Technical Specification

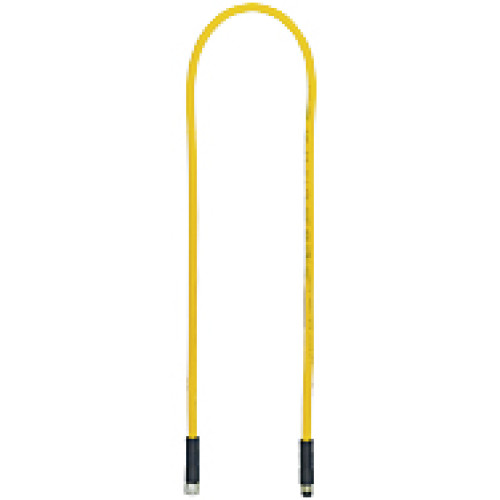

Cable type -
Multi-core
Number of poles -
8
Continuity resistance -
3 Milli-Ohm
Material of contact surface -
Gold
Material of cable sheath -
Polyurethane (PUR)
Type of electrical connection, box-sided -
M8
Type of electrical connection, field-sided -
M8
Positioning cable feed, box-sided -
Straight
Positioning cable feed, field-sided -
Straight
Type of plug-in contact, field sided -
Female (bus)
Material contact body -
CuZn
Colour cable sheath -
Yellow
Type of plug-in contact, box-sided -
Male (plug)
Cable length -
2 Metre
Degree of protection (IP rating) -
IP67
Halogen free -
Permitted cable outer temperature after assembling without vibration -
-40 Degrees celsius
Rated current In -
1.5 Ampere
Rated voltage -
30 Volt
