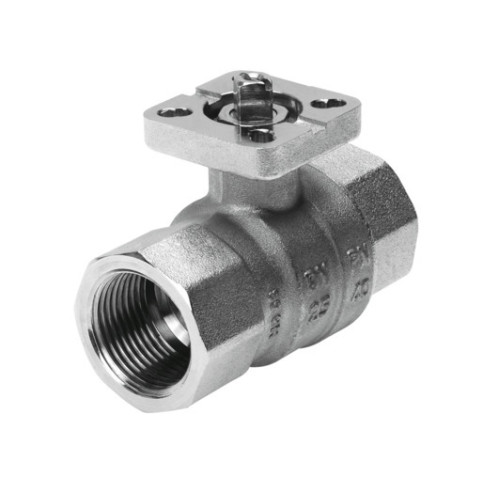

VAPB-21/2-F-25-F07 Ball valve

Manufacturer's No: VAPB-21/2-F-25-F07     Manufacturer: Festo
VAPB-21/2-F-25-F07 Ball valve

Availability Available to order

£88.11
  • Valve type: Ball valve VAPB-21/2-F-25-F07
  • Size: DN63 (2 1/2 inch)
  • Pressure rating: PN25
  • Actuation: Mechanical
  • Sealing principle: Soft
  • Mounting: In-line installation, optional position
  • Flow direction: Reversible
  • Breakaway torque at PN: 45 Nm, at 1 MPa: 33 Nm
  • Mediums: Compressed air, inert gases, water, neutral fluids
  • Temperature range: -20°C to 150°C

Read more

  • Flow rate: Kv 535 m³/h
  • Materials: Brass housing (nickel-plated), PTFE seat seal, HNBR and PTFE seals, hard-chrome-plated brass ball, brass shaft
  • Weight: 3100 g
  • Corrosion resistance: Class 1 (Low corrosion stress)
  • Standards: ISO 5211, RoHS-compliant, VDMA24364 zone III
  • Symbol: 991458


Product

Manufacturer Material ID -
VAPB-21/2-F-25-F07
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
30265802

Technical Specification

Thumbnail of product picture -
Medien_800/Pictures_800/534310_800.jpg
Accessory -
Type of accessory/spare part -
Other
Festo

Availability Available to order

£88.11
