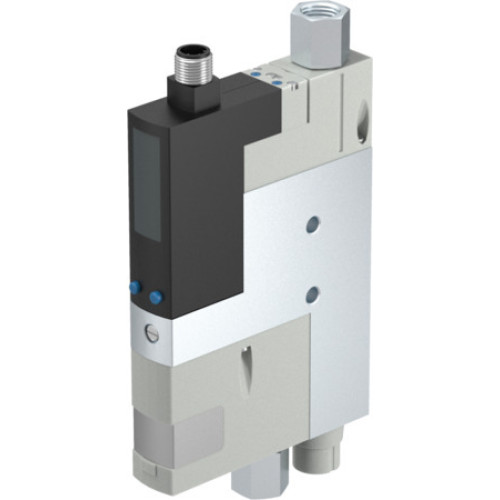

OVEM-07-H-B-GO-OE-N-2N Vacuum generator

Manufacturer's No: OVEM-07-H-B-GO-OE-N-2N     Manufacturer: Festo
OVEM-07-H-B-GO-OE-N-2N Vacuum generator

Availability Back Order

£120.12
  • Vacuum generator model: OVEM-07-H-B-GO-OE-N-2N
  • Supply/vacuum port with G threads
  • Exhaust port with open silencer
  • Nominal size Laval nozzle: 0.7 mm
  • Grid dimension: 20 mm
  • Silencer design: Open
  • Ejector characteristic: High vacuum and Standard
  • Grade of filtration: 40 MIM
  • Integrated functions: Electric ejector pulse valve, Flow control, Electric on-off valve, Filter, Air saving function, Check valve, Vacuum switch
  • Design: Modular

Read more

  • Short circuit current rating: Yes
  • Measured variable: Relative pressure
  • Measuring principle: Piezoresistive
  • Switching element function: N/C contact, N/O contact
  • Switching function: Window comparator, Threshold value comparator
  • Valve function: Open
  • Reverse polarity protection: For all electrical connections
  • Display type: 4-place alphanumeric, Back-lit LCD
  • Indicating range: -0.999 BAR, 0 BAR
  • Displayable units: bar
  • Setting range hysteresis: -0.9 BAR, 0 BAR
  • Operating pressure: 2 BAR, 8 BAR, 4.1 BAR for max. vacuum
  • Max. vacuum: 93%
  • Nominal operating pressure: 6 BAR
  • Max. suction flow rate against atmosphere: 16 L2
  • Air supply time at nominal operating pressure: 0.4 S
  • Operational voltage range DC: 20.4 V to 27.6 V
  • Duty cycle: 100%
  • Inductive protective circuit: Adapted to MZ, MY, ME coils
  • Insulation voltage: 50 V
  • No-load supply current: 70 MA
  • Max. output current: 100 MA
  • Off-state current: 0.1 MA
  • Switching output: 2xNPN
  • Voltage drop: 1.5 V
  • Immunity to surge: 0.8 KV
  • Overload protection: Available
  • Pollution degree: 3
  • Approvals: RCM trademark, c UL us listed (OL), KC mark: KC-EMV, CE mark, UKCA marking
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Media temperature: 0°C to 50°C
  • Relative air humidity: 5% to 85%
  • Sound pressure level at nominal operating pressure: 58 DBA
  • Degree of protection: IP65, Protection class: III
  • Ambient temperature: 0°C to 50°C
  • Max. tightening torque: 0.8 Nm with female thread, 2.5 Nm with through-hole
  • Product weight: 335 g
  • Pressure measuring range: -1 BAR to 0 BAR
  • Accuracy: ±3% FS, Reproducibility: 0.6%
  • Switching logic for inputs: NPN (negative switching)
  • Electrical connection: 5-pin, M12x1 plugs
  • Type of mounting: With through-hole, Via female thread, With accessories
  • Pneumatic connection port 1: G1/4
  • Pneumatic connection port 3: Integrated silencer
  • Vacuum connection: G1/4
  • Materials: RoHS-compliant, NBR seals, POM receiver nozzle, Fabric, PA, Sintered steel filters, PA-reinforced filter housing, Die-cast aluminium, PA-reinforced housing, Steel adjusting screw, Wrought aluminium alloy silencer, PU foam, Nickel-plated brass connector housing, Gold-plated brass electrical contact, Steel pins, TPE-U keypad, Anodised wrought aluminium alloy fitting
