540050

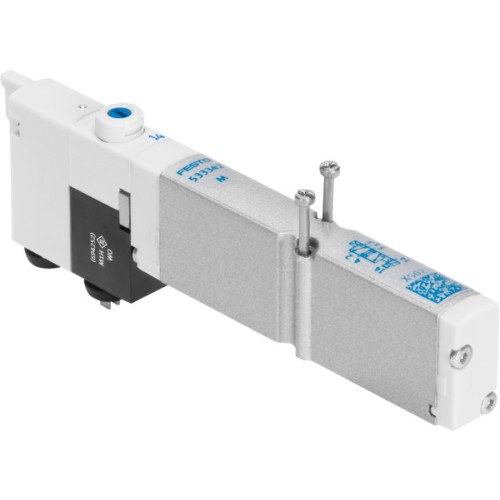

VMPA1-M1H-W-PI Solenoid valve

Manufacturer's No: VMPA1-M1H-W-PI     Manufacturer: Festo
VMPA1-M1H-W-PI Solenoid valve

Availability Available to order

£115.73
  • Solenoid valve VMPA1-M1H-W-PI for valve terminal MPA-S
  • Valve function: 3/2 open, monostable
  • Type of actuation: Electrical
  • Valve size: 10 mm
  • Standard nominal flow rate: 255 l/min
  • Operating pressure: -0.09 MPa to 1 MPa
  • Design: Piston gate valve
  • Type of reset: Pneumatic spring
  • Degree of protection: IP65
  • Sealing principle: Soft

Read more

  • Manual override: Detenting and Non-detenting
  • Type of piloting: Pilot actuated
  • Flow direction: Reversible
  • Pilot pressure: 0.3 MPa to 8 BAR
  • Suitability for vacuum
  • Switching time off: 20 ms
  • Switching time on: 10 ms
  • Max. positive test pulse with 0 signal: 400 ms
  • Max. negative test pulse with 1 signal: 200 ms
  • Permissible voltage fluctuations: +/- 25%
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot medium: Lubricated operation possible
  • Vibration resistance: Transport application test with severity level 2
  • Shock resistance: Shock test with severity level 2
  • Corrosion resistance class CRC: 1 - Low corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L
  • Storage temperature: -20°C to 40°C
  • Media temperature: -5°C to 50°C
  • Relative air humidity: Max. 90% at 40°C
  • Ambient temperature: -5°C to 50°C
  • Max. tightening torque for valve mounting: 0.25 Nm
  • Product weight: 49 g
  • Type of mounting: With through-hole
  • Note on materials: RoHS-compliant
  • Material seals: NBR
  • Material housing: Die-cast aluminium

Mandatory additional product

Accessories



Product

Manufacturer Material ID -
VMPA1-M1H-W-PI
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
CH
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Suitable for safety functions -
Type of interface for safety communication -
None
Type of electric connection -
Connector M12
Interface type -
None
Thumbnail of product picture -
Medien_800/Pictures_800/540050_800.jpg
Ambient temperature during operating -
-25 Degrees celsius
Height of sensor -
75 Millimetre
Length of sensor -
40 Millimetre
Width sensor -
40 Millimetre
Festo

Availability Available to order

£115.73
