540121

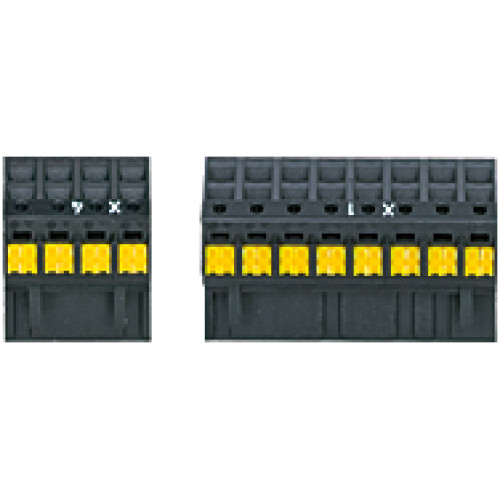

Set plugable spring loaded terminals for 45mm housing, Content: 1piece X1 4pole and X2 8pole.

Manufacturer's No: SDD ES SET SPRING LOADED TERMINALS     Manufacturer: Pilz
Set plugable spring loaded terminals for 45mm housing, Content: 1piece X1 4pole and X2 8pole.

Availability Available to order

£20.39
  • Safety Device Diagnostics (SDD)
  • Set of plug-in terminals
  • For 45 mm housing
  • Spring-loaded type
  • PU 2 pieces
  • X1: 4-pin terminal
  • X2: 8-pin terminal


Product

Manufacturer Material ID -
SDD ES SET SPRING LOADED TERMINALS
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
CN
UNSPSC -
43233603

Technical Specification

Width -
45 Millimetre
Height -
20 Millimetre
Depth -
20 Millimetre
Number of poles -
8
Number of clamp positions per pole -
2
Conductor cross section flexible (fine-strand) with cable end sleeve -
0.2 Square millimetre
Conductor cross section solid (solid, stranded) -
0.25 Square millimetre
Max. rated current -
6 Ampere
