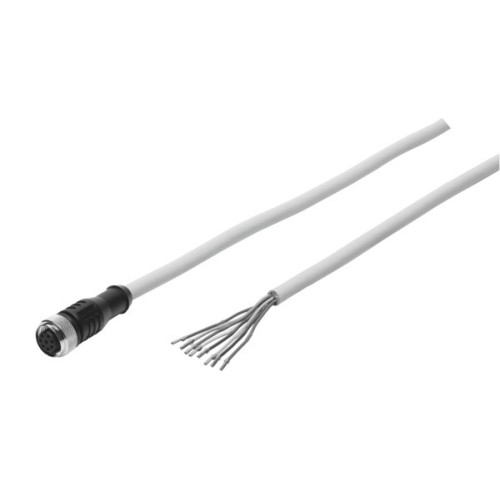

SIM-M12-8GD-10-PU Plug socket with cable

Manufacturer's No: SIM-M12-8GD-10-PU     Manufacturer: Festo
SIM-M12-8GD-10-PU Plug socket with cable

Availability Available to order

£213.60
  • Socket Type: M12 (A-coded), Straight, Shielded
  • Number of Pins/Wires: 8
  • Cable Type: TPE-U(PUR), Standard
  • Cable Length: 10m
  • Conforms to Standard: EN 61076-2-101
  • Electrical Connection 1: Field device side, M12x1 A-coded, Screw-type lock
  • Electrical Connection 2: Controller side, Open end
  • Operational Voltage Range: 0-30V DC, 0-30V AC
  • Current Rating: 2A at 40°C
  • Immunity to Surge: 0.8KV

Read more

  • Shielding: Yes
  • Cable Diameter: 6.3mm, 8 x 0.25mm²
  • Bending Radius: 32mm (fixed), 66mm (moving)
  • IP Rating: IP67
  • Temperature Range: -25°C to 80°C
  • CE Mark: EU RoHS Directive compliant
  • UKCA Mark: UK RoHS compliant
  • Material: Cable Sheath - TPE-U(PUR), Housing - TPE-U(PUR), Screw-type Lock - Brass, Seals - NBR, Electrical Contact - Gold-plated Copper Alloy

Accessories



Product

Manufacturer Material ID -
SIM-M12-8GD-10-PU
Net Weight -
0.52kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Housing material -
Plastic
Suitable for safety functions -
Coating housing -
Anodised
Type of switching contact -
Other
Type of interface for safety communication -
None
Type of electric connection -
Cable entry metrical
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Construction type housing -
Other
Number of safety auxiliary contacts -
4
Interface type -
None
Rated control supply voltage Us magnet drive at AC 50 Hz -
110 Volt
Type of guard locking -
Quiescent current principle
Ambient temperature during operating -
-25 Degrees celsius
Clamping force -
1500 Newton
Degree of protection (IP rating) -
IP67
Height of sensor -
184 Millimetre
Length of sensor -
51 Millimetre
Number of contacts as normally closed contact -
3
Number of contacts as normally open contact -
1
Width sensor -
42.5 Millimetre
