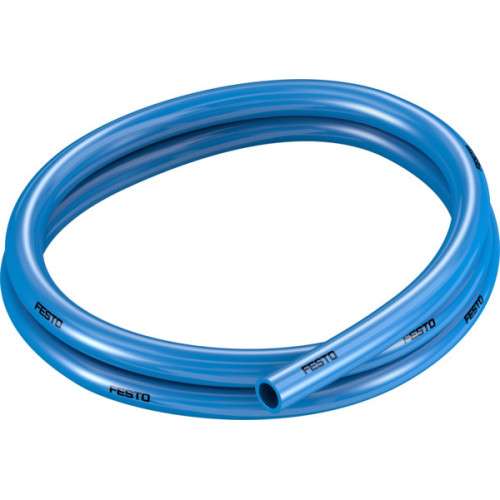

PUN-V0-14X2-BL-C Plastic tubing

Manufacturer's No: PUN-V0-14X2-BL-C     Manufacturer: Festo
PUN-V0-14X2-BL-C Plastic tubing

Availability On Request

£32.23
  • Plastic tubing PUN-V0-14X2-BL-C made of flame-retardant polyurethane
  • Tubing outer diameter: 14 mm, inner diameter: 9.8 mm
  • Suitable for energy chains, ideal for welding applications
  • Operating pressure range: -0.095 MPa to 6 bar (-0.95 to 87 psi)
  • Temperature-dependent operating pressure: -0.095 MPa to 9 bar (-0.95 to 130.5 psi)
  • Approval by German Technical Control Board (TÜV), RoHS-compliant
  • Fire test material: UL94 V-0 (3 mm), UL94 V-2 (0.75 mm)
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Ambient temperature range: -35°C to 60°C, unpressurized use up to 90°C
  • Product weight: 0.096 kg/m

Read more

  • Pneumatic connection for push-in connector with 14 mm outer diameter
  • Blue color for easy identification, deviates from standard due to flame protection
  • Shore hardness: D 54 +/-3
  • Material: TPE-U(PU)
  • Packaging quantity varies by country
  • Note: Water max. 0.6 MPa at max. 50°C, operating medium: compressed air and water (liquid, ice-free)


Product

Manufacturer Material ID -
PUN-V0-14X2-BL-C
Net Weight -
0.24kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
DE
UNSPSC -
26121629

Technical Specification

Cable type -
Multi-core
Number of poles -
12
Material of contact surface -
Gold
Material of cable sheath -
Polyurethane (PUR)
Type of electrical connection, field-sided -
M12
Positioning cable feed, field-sided -
Straight
Type of plug-in contact, field sided -
Female (bus)
Material contact body -
CuZn
Cable length -
5 Metre
Colour cable sheath -
Yellow
Degree of protection (IP rating) -
IP67
Halogen free -
Permitted cable outer temperature after assembling without vibration -
-30 Degrees celsius
Rated current In -
2 Ampere
Rated voltage -
30 Volt
