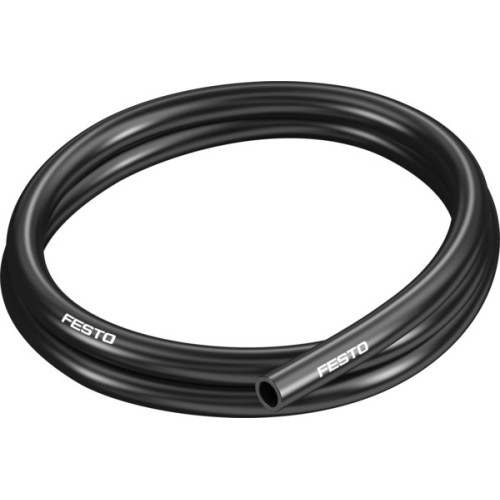

PUN-V0-16X2,5-SW-C Plastic tubing

Manufacturer's No: PUN-V0-16X2,5-SW-C     Manufacturer: Festo
PUN-V0-16X2,5-SW-C Plastic tubing

Availability On Request

£41.87
  • Plastic tubing PUN-V0-16X2,5-SW-C made of flame-retardant polyurethane
  • Outer diameter: 16 mm, inner diameter: 11 mm
  • Suitable for use near welding applications
  • Available in lengths ranging from 1 to 50 meters
  • Operating pressure range: -0.095 MPa to 7 bar (-13.775 to 101.5 psi)
  • Temperature-dependent operating pressure: -0.095 MPa to 10 bar (-13.775 to 145 psi)
  • Maximum water pressure: 0.6 MPa at 50°C
  • Approval from German Technical Control Board (TÜV)
  • Fire test material: UL94 V-0 (3 mm), UL94 V-2 (0.75 mm)
  • LABS (PWIS) conformity: VDMA24364-B2-L

Read more

  • Temperature range: -35°C to 60°C, unpressurized use up to 90°C
  • Weight: 0.147 kg/m
  • Shore hardness: D 54 +/-3
  • RoHS-compliant TPE-U(PU) material
  • Color: Black (flame protection deviation)
  • Pneumatic connection for push-in connector O.D. 16 mm


Product

Manufacturer Material ID -
PUN-V0-16X2,5-SW-C
Net Weight -
0.46kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
DE
UNSPSC -
26121629

Technical Specification

Cable type -
Multi-core
Number of poles -
12
Material of contact surface -
Gold
Material of cable sheath -
Polyurethane (PUR)
Type of electrical connection, field-sided -
M12
Positioning cable feed, field-sided -
Straight
Type of plug-in contact, field sided -
Female (bus)
Material contact body -
CuZn
Cable length -
10 Metre
Colour cable sheath -
Yellow
Degree of protection (IP rating) -
IP67
Halogen free -
Permitted cable outer temperature after assembling without vibration -
-30 Degrees celsius
Rated current In -
2 Ampere
Rated voltage -
30 Volt
