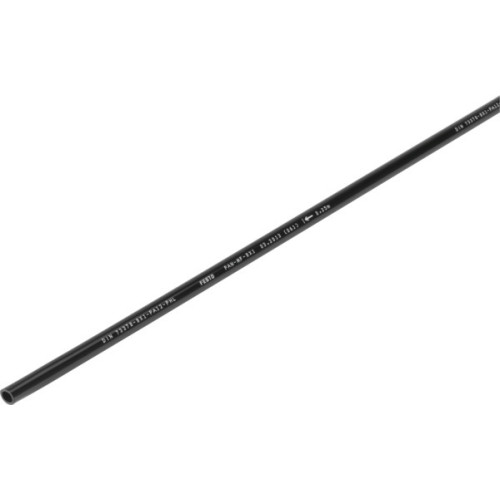

PAN-MF-8X1-SW Plastic tubing

Manufacturer's No: PAN-MF-8X1-SW     Manufacturer: Festo
PAN-MF-8X1-SW Plastic tubing

Availability On Request

£34.91
  • Plastic tubing PAN-MF-8X1-SW made of Polyamide
  • Automotive approval certificate to DIN 73378
  • Tubing O.D.: 8 mm, I.D.: 6 mm
  • Suitable for energy chains
  • Operating pressure: -0.095 MPa to 1.9 MPa (-0.95 to 19 bar, -13.775 to 275.5 psi)
  • Operating medium: Compressed air, mineral oil
  • Temperature range: -60°C to 100°C
  • Flow-relevant bending radius: 50 mm, Min. bending radius: 35 mm
  • Product weight: 0.022 kg/m
  • Pneumatic connection: For push-in connector O.D. 8 mm

Read more

  • Colour: Black, Shore hardness: D 65 +/-3
  • RoHS-compliant, Material: PA12-P


Product

Manufacturer Material ID -
PAN-MF-8X1-SW
Net Weight -
0.22kg

Additional Product Information

Commodity Code -
85444290
Country of Origin -
DE
UNSPSC -
26121629

Technical Specification

Cable type -
Multi-core
Number of poles -
12
Material of contact surface -
Gold
Material of cable sheath -
Polyurethane (PUR)
Type of electrical connection, box-sided -
M12
Type of electrical connection, field-sided -
M12
Positioning cable feed, box-sided -
Straight
Positioning cable feed, field-sided -
Straight
Type of plug-in contact, field sided -
Female (bus)
Material contact body -
CuZn
Type of plug-in contact, box-sided -
Male (plug)
Cable length -
3 Metre
Colour cable sheath -
Yellow
Degree of protection (IP rating) -
IP67
Halogen free -
Permitted cable outer temperature after assembling without vibration -
-30 Degrees celsius
Rated current In -
2 Ampere
Rated voltage -
30 Volt
Festo

Availability On Request

£34.91
