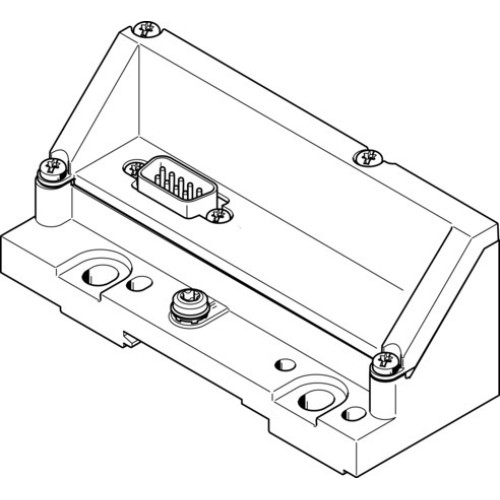

VMPAL-EPL-SD9-IP40 End plate

Manufacturer's No: VMPAL-EPL-SD9-IP40     Manufacturer: Festo
VMPAL-EPL-SD9-IP40 End plate

Availability Available to order

£20.81
  • End plate model: VMPAL-EPL-SD9-IP40
  • Dimensions: Width: 43mm, Length: 107.3mm
  • Max. number of valve positions: 8
  • Valve terminal structure: Allows mixing of valve sizes
  • Max. number of valve coils: 8
  • Operating pressure: -0.09 MPa to 10 bar
  • Pilot pressure: 0.3 MPa to 8 bar
  • Nominal operating voltage DC: 24V
  • Corrosion resistance class CRC: 3 (high corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L

Read more

  • Degree of protection: IP40 (In assembled state)
  • Ambient temperature: -5°C to 50°C
  • Product weight: 190g
  • Electrical connection: Multi-pin plug, Sub-D connector system, 9 connections/cores, connection pattern: 995639
  • Materials: RoHS-compliant, End plate made of die-cast aluminium and PA-reinforced


Product

Manufacturer Material ID -
VMPAL-EPL-SD9-IP40
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
CH
UNSPSC -
40141609

Technical Specification

Construction type housing -
Other
Spare part -
Type of accessory/spare part -
Other
