570783

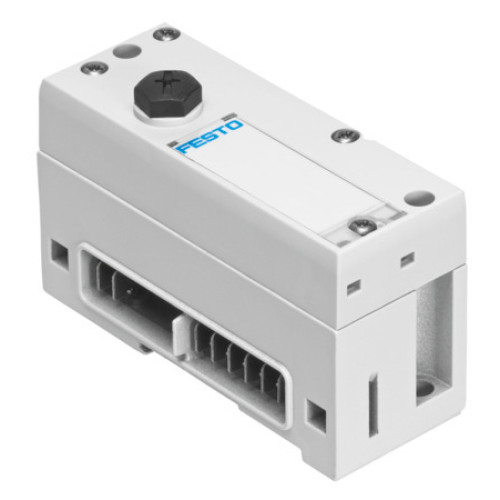

VMPAL-EPL-CPX End plate

Manufacturer's No: VMPAL-EPL-CPX     Manufacturer: Festo
VMPAL-EPL-CPX End plate

Availability Available to order

£183.19
  • End plate model: VMPAL-EPL-CPX
  • Dimensions: Width: 40mm, Length: 107.3mm
  • Max. number of valve positions: 32
  • Valve terminal structure: Allows mixing of valve sizes
  • Max. number of valve coils: 32
  • Operating pressure range: -0.09 MPa to 10 bar
  • Pilot pressure range: 0.3 MPa to 8 bar
  • Nominal operating voltage DC: 24V
  • Corrosion resistance class CRC: 3 (high corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B1/B2-L

Read more

  • Degree of protection: IP67 (In assembled state)
  • Ambient temperature range: -5°C to 50°C
  • Product weight: 130g
  • Electrical connection 1: Fieldbus, Plugs, Internal for CPX
  • Material: End plate made of die-cast aluminium and PA-reinforced
  • RoHS-compliant materials


Product

Manufacturer Material ID -
VMPAL-EPL-CPX
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
84819000
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
40141609
