5TT5200

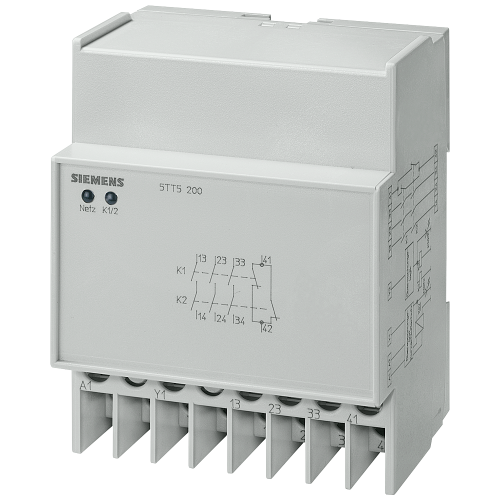

EMERGENCY STOP relay T55 230 V 10 A installation depth 55 mm

Manufacturer's No: 5TT5200     Manufacturer: Siemens
EMERGENCY STOP relay T55 230 V 10 A installation depth 55 mm

Availability Available to order

£538.58
  • Emergency OFF relay T55
  • Voltage: 230V
  • Current rating: 10A
  • Overall depth: 55 mm


Product

Manufacturer Material ID -
5TT5200
Net Weight -
0.30kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Release-delay -
- Second
Number of outputs, safety related, undelayed, semiconductors -
-
Number of outputs, safety related, delayed, semiconductors -
-
Number of outputs, signalling function, undelayed, semiconductors -
-
Number of outputs, signalling function, delayed, semiconductors -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
- Volt
Type of safety acc. IEC 61496-1 -
UN
With approval for T‹V -
Category according to EN 954-1 -
4
Performance level acc. EN ISO 13849-1 -
Level e
Stop category acc. IEC 60204 -
Other
Model -
Other
Rated control supply voltage at AC 50 Hz -
24 Volt
Rated control supply voltage at DC -
24 Volt
Stop category acc. to IEC 60204 -
Other
Voltage type for actuating -
AC
SIL according to IEC 61508 -
None
Depth -
55 Millimetre
Evaluation inputs -
3-channel
Height -
90 Millimetre
Number of outputs, safety related, delayed, with contact -
1
Number of outputs, safety related, undelayed, with contact -
1
Number of outputs, signalling function, delayed, with contact -
1
Number of outputs, signalling function, undelayed, with contact -
1
Performance level acc. to EN ISO 13849-1 -
Level e
Suitable for monitoring of emergency-stop circuits -
Suitable for monitoring of position switches -
Type of electric connection -
Screw connection
Width -
71 Millimetre
With approval for BG BIA -
With approval for TÜV -
With feedback circuit -
With start input -

Availability Available to order

£538.58
