5SD74341

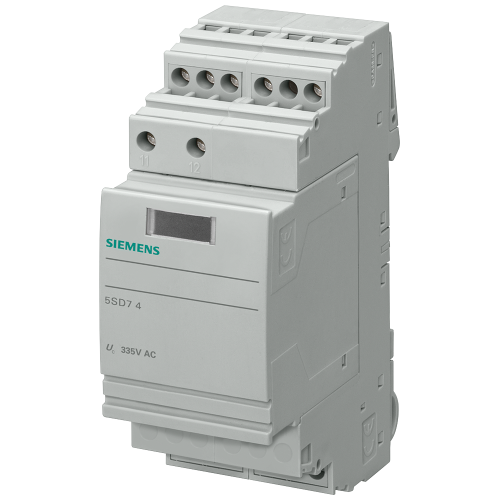

Type 3 surge arrester Requirement class D Rated voltage UN 230 V UC 253V AC, 4-pole for 3-phase powe

Manufacturer's No: 5SD7434-1     Manufacturer: Siemens
Type 3 surge arrester Requirement class D Rated voltage UN 230 V UC 253V AC, 4-pole for 3-phase powe

Availability On Request

POA
  • Type 3 surge arrester
  • Requirement class D
  • Rated voltage: UN 230V, UC 253V AC
  • 4-pole design for 3-phase power supply


Product

Manufacturer Material ID -
5SD7434-1
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85363090
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122330

Technical Specification

Voltage protection level -
- Kilovolt
Nominal discharge surge current (8/20) -
- kiloampere
Nominal voltage DC -
- Volt
Max. continuous voltage DC -
- Volt
Max. PV-voltage -
- Volt
Max. discharge surge current (8/20) -
- kiloampere
Mounting method -
DIN rail (top hat rail) 35 mm
With remote signalling contact -
Number of conductors (without earthing) -
3
Construction size -
2 modular spacing
Max. continuous voltage AC -
264 Volt
Nominal voltage AC -
230 Volt
Voltage protection level L-N -
1.2 Kilovolt
Signalling at the device -
None
Degree of protection (IP) -
IP20
Voltage protection level N-PE -
1.5 Kilovolt
Max. conductor cross section solid (solid, stranded) -
4 Square millimetre
Max. conductor cross section flexible (fine-strand) -
2.5 Square millimetre
Short-circuit breaking capacity (Isccr) -
1.5 kiloampere
