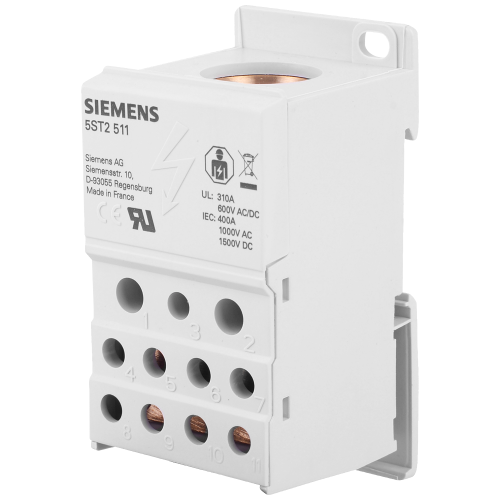

5ST2511

Distribution block 1-pole, 400 A, 690V Input: 1x 95-185 mm2 Output: 2x2.5-25+5x 2.5-16+4x 2.5-10 mm2

Manufacturer's No: 5ST2511     Manufacturer: Siemens
Distribution block 1-pole, 400 A, 690V Input: 1x 95-185 mm2 Output: 2x2.5-25+5x 2.5-16+4x 2.5-10 mm2

Availability On Request

£100.32
  • Distribution block: 1-pole
  • Current rating: 400 A
  • Voltage rating: 690V
  • Input: 1x 95-185 mm2
  • Outputs:
    • 2x 2.5-25 mm2
    • 5x 2.5-16 mm2
    • 4x 2.5-10 mm2
  • Designed for installation on standard mounting rail


Product

Manufacturer Material ID -
5ST2511
Net Weight -
0.41kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
FR
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121410

Technical Specification

Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
2.5 Square millimetre
Connectable conductor cross section multi-wired -
2.5 Square millimetre
Connectable conductor cross section solid-core -
2.5 Square millimetre
Height -
44 Millimetre
Internally connected stages -
Material insulation body -
Other
Number of clamp positions per level -
7
Number of levels -
1
Operating temperature -
-25 Degrees celsius
Rated current In -
350 Ampere
Rated voltage -
600 Volt
Type of electrical connection 1 -
Screw connection
Type of electrical connection 2 -
Screw connection
Width -
45 Millimetre

Availability On Request

£100.32
