5SV33476KL

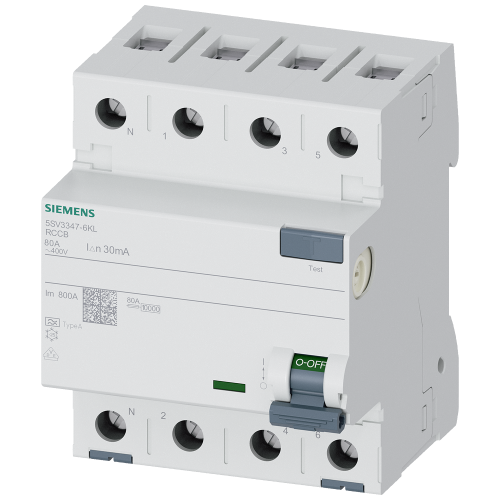

RCCB, 4-pole, type A, In: 80 A, 30 mA, Un AC: 400 V, N left

Manufacturer's No: 5SV3347-6KL     Manufacturer: Siemens
RCCB, 4-pole, type A, In: 80 A, 30 mA, Un AC: 400 V, N left

View 3D

Availability Back Order

£671.79
  • Residual Current Operated Circuit Breaker
  • 4-pole, Type A
  • Rated Current (In): 80 A
  • Sensitivity: 30 mA
  • Rated Voltage (Un AC): 400 V
  • Mounting Position: Left

Selectable mandatory product

PIN BUSBAR.16SQMM,3PH,FI NLI+8XPH

Product Code - 5ST3668
Price £14.26
Back Order

Accessories

Price £0.0816
Back Order
Price £0.0816
Back Order


Product

Manufacturer Material ID -
5SV3347-6KL
Net Weight -
0.37kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Rated impulse withstand voltage Uimp -
- Kilovolt
Mounting method -
DIN rail
Built-in depth -
70 Millimetre
Degree of protection (IP) -
IP20
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Frequency -
50 Hz
Leakage current type -
A
Number of poles -
4
Pollution degree -
2
Power loss -
4.1 Watt
RAL-number (similar) -
7035
Rated current -
80 Ampere
Rated fault current -
0.03 Ampere
Rated impulse-withstand voltage (Uimp) -
6 Kilovolt
Rated insulation voltage Ui -
2000 Volt
Rated voltage -
400 Volt
Recess depth -
70 Millimetre
Short-circuit breaking capacity (Icw) -
10 kiloampere
Surge current capacity -
1 kiloampere
Voltage type -
AC
Width in number of modular spacings -
4
With interlocking device -

Availability Back Order

£671.79
