5SV34476

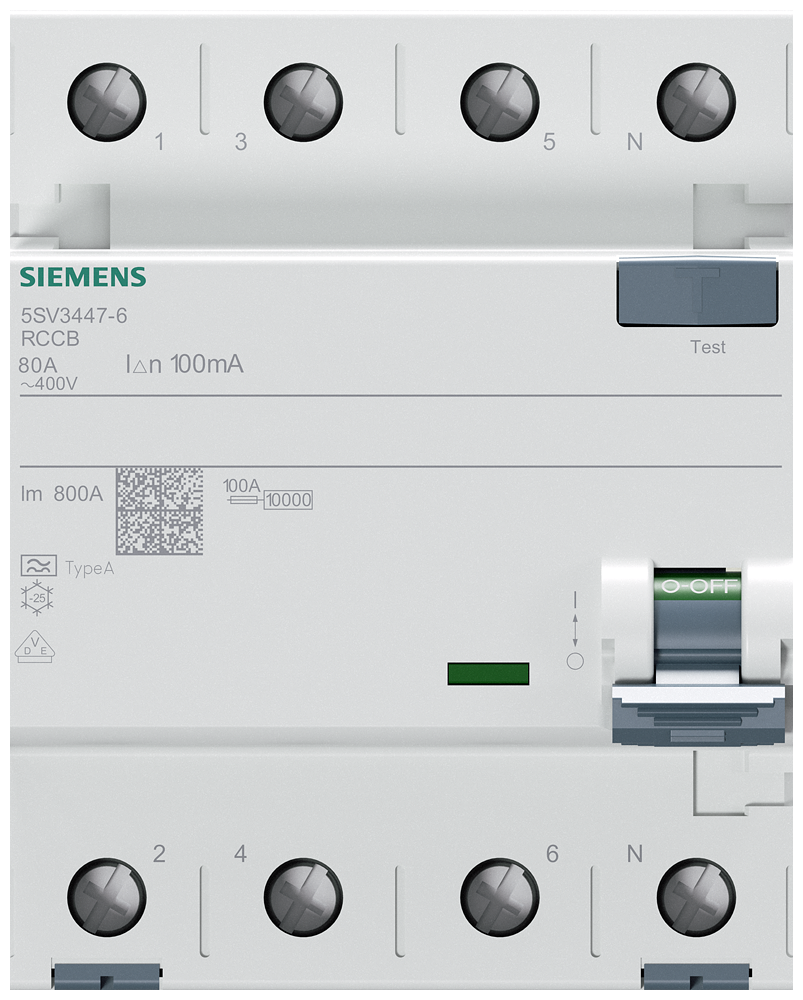

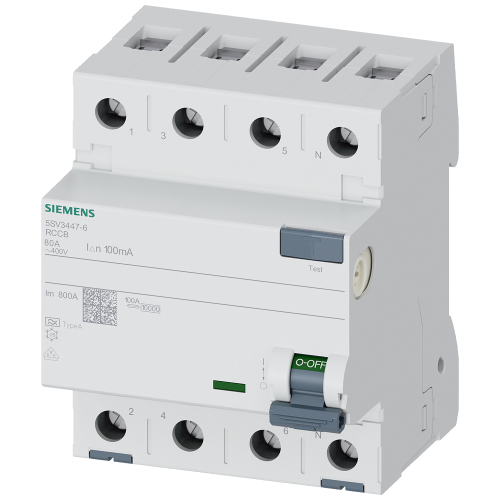

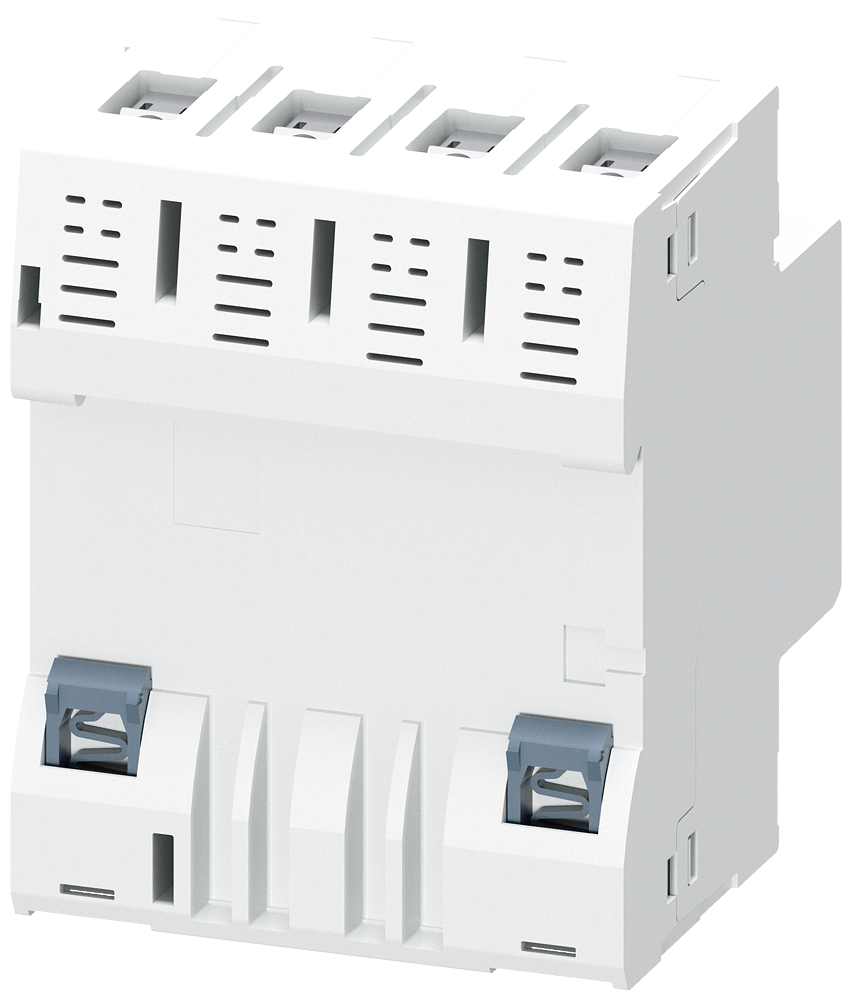

Residual current operated circuit breaker, 4-pole, type A, In: 80 A, 100 mA, Un AC: 400 V

Manufacturer's No: 5SV3447-6     Manufacturer: Siemens
Residual current operated circuit breaker, 4-pole, type A, In: 80 A, 100 mA, Un AC: 400 V

Availability On Request

£605.00
  • Residual current operated circuit breaker
  • 4-pole
  • Type: A
  • Rated current: 80 A
  • Sensitivity: 100 mA
  • Rated voltage: 400 V AC

Selectable mandatory product

Accessories

Price £0.0836
On Request
Price £0.0836
On Request


Product

Manufacturer Material ID -
5SV3447-6
Net Weight -
0.34kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Rated impulse withstand voltage Uimp -
- Kilovolt
Built-in depth -
70 Millimetre
Degree of protection (IP) -
IP20
Mounting method -
DIN rail
Degree of protection (IP rating) -
IP20
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Frequency -
50 Hz
Leakage current type -
A
Number of poles -
4
Pollution degree -
2
Power loss -
4.1 Watt
RAL-number (similar) -
7035
Rated current -
80 Ampere
Rated fault current -
0.1 Ampere
Rated impulse-withstand voltage (Uimp) -
6 Kilovolt
Rated insulation voltage Ui -
2000 Volt
Rated voltage -
400 Volt
Recess depth -
70 Millimetre
Short-circuit breaking capacity (Icw) -
10 kiloampere
Surge current capacity -
1 kiloampere
Voltage type -
AC
Width in number of modular spacings -
4
With interlocking device -

Availability On Request

£605.00
