5SV37465

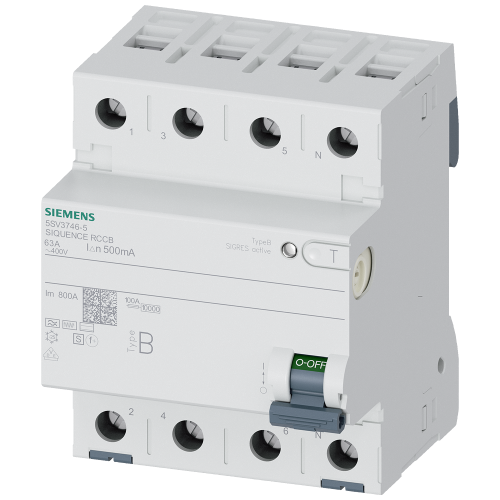

Residual current operated circuit breaker, 4-pole, Type B, selective, In: 63 A, 500 mA, Un AC: 400 V

Manufacturer's No: 5SV3746-5     Manufacturer: Siemens
Residual current operated circuit breaker, 4-pole, Type B, selective, In: 63 A, 500 mA, Un AC: 400 V

View 3D

Availability Back Order

£939.03
  • Residual current operated circuit breaker
  • 4-pole, type B, selective
  • Rated current: 63 A
  • Sensitivity: 500 mA
  • Rated voltage: 400 V AC
  • Suitable for harsh ambient conditions
  • Extended test interval

Selectable mandatory product

Accessories

Price £0.0816
Back Order
Price £0.0816
Back Order


Product

Manufacturer Material ID -
5SV3746-5
Net Weight -
0.45kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Rated impulse withstand voltage Uimp -
- Kilovolt
Built-in depth -
70 Millimetre
Degree of protection (IP) -
IP20
Mounting method -
DIN rail
Degree of protection (IP rating) -
IP20
Additional equipment possible -
Ambient temperature during operating -
-25 Degrees celsius
Connectable conductor cross section multi-wired -
0.75 Square millimetre
Connectable conductor cross section solid-core -
0.75 Square millimetre
Frequency -
50/60 Hz
Leakage current type -
B
Number of poles -
4
Pollution degree -
2
Power loss -
5 Watt
RAL-number (similar) -
7035
Rated current -
63 Ampere
Rated fault current -
0.5 Ampere
Rated impulse-withstand voltage (Uimp) -
6 Kilovolt
Rated insulation voltage Ui -
2000 Volt
Rated voltage -
400 Volt
Recess depth -
70 Millimetre
Selective protection -
Short-circuit breaking capacity (Icw) -
10 kiloampere
Surge current capacity -
5 kiloampere
Voltage type -
AC
Width in number of modular spacings -
4
With interlocking device -
