5TT3435

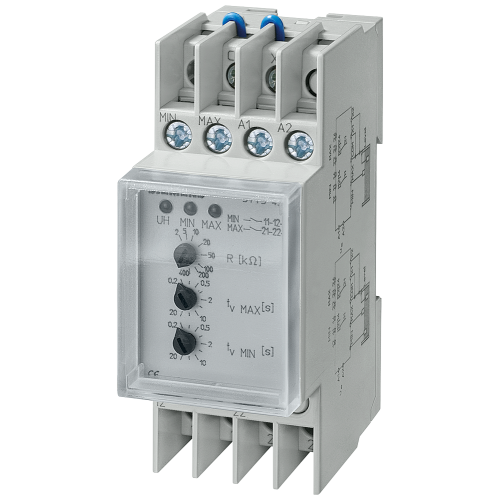

Level relay T5570 230 V AC 4 A min/max with transparent cap

Manufacturer's No: 5TT3435     Manufacturer: Siemens
Level relay T5570 230 V AC 4 A min/max with transparent cap

Availability On Request

£275.12
  • Level relay model: T5570
  • Voltage: 230 V AC
  • Current rating: 4A
  • Transparent cap included


Product

Manufacturer Material ID -
5TT3435
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
90261029
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
41112500

Technical Specification

Rated control supply voltage Us at DC -
- Volt
Number of contacts as normally closed contact -
-
Number of contacts as normally open contact -
-
Rated control supply voltage Us at AC 50HZ -
230 Volt
Rated control supply voltage Us at AC 60HZ -
230 Volt
Rated control supply voltage at AC 50 Hz -
230 Volt
Rated control supply voltage at AC 60 Hz -
230 Volt
Voltage type for actuating -
AC
Depth -
64 Millimetre
Height -
90 Millimetre
Max. permitted off-delay time -
20 Second
Max. permitted operate delay time -
20 Second
Min. adjustable off-delay time -
0.2 Second
Min. adjustable operate delay time -
0.2 Second
Number of contacts as change-over contact -
2
Number of inputs for electrodes -
1
Physical measurement principle -
Conductive
Response value sensitivity adjustable -
Type of electric connection -
Screw connection
Width -
36 Millimetre

Availability On Request

£275.12
