5TT41030

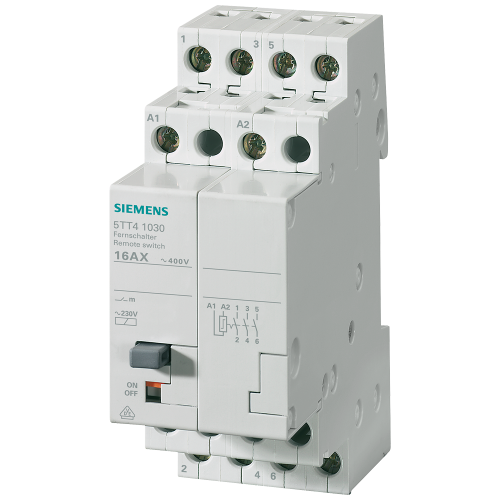

Remote control switch with 3 NO contacts Contact for 230 V AC, 400V 16A Control 230 V AC

Manufacturer's No: 5TT4103-0     Manufacturer: Siemens
Remote control switch with 3 NO contacts Contact for 230 V AC, 400V 16A Control 230 V AC

Availability On Request

£62.71
  • Remote control switch with 3 normally open (NO) contacts
  • Contacts rated for 230V AC and 400V 16A
  • Control input rated for 230V AC

Accessories



Product

Manufacturer Material ID -
5TT4103-0
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
RO
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Control voltage 2 -
- Volt
Frequency control voltage 2 -
- Hertz
Built-in depth -
70 Millimetre
Manual operation possible -
Type of control voltage 2 -
AC/DC
Control voltage 1 -
184 Volt
Frequency control voltage 1 -
50 Hertz
Function -
Mechanical switch
Manual operation -
Max. incandescent lamp load -
2000 Watt
Max. load fluorescent lamp -
500 Voltampere
Max. load fluorescent lamp (Duo circuit) -
900 Voltampere
Max. load fluorescent lamp (parallel compensated) -
400 Voltampere
Max. switching current (cos phi = 0.6) -
16 Ampere
Mounting method -
DIN rail
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
3
Rated switch current -
16 Ampere
Recess depth -
70 Millimetre
Supply voltage -
250 Volt
Type of control voltage 1 -
AC
Voltage type of supply voltage -
AC
Width in number of modular spacings -
2

Availability On Request

£62.71
